| Nama merek: | VIIPLUS.COM |
| Nomor Model: | China Solid Bronze Bearing |
CuPb15Sn8 Solid Bronze Bearing Eccentric Bushing Bottom Shell Bushing For Crusher adalah produk yang membutuhkan perawatan yang rendah,membuatnya ideal untuk digunakan dalam aplikasi di mana downtime tidak merupakan pilihanDesain alur minyak khusus dapat disediakan untuk produk ini untuk meningkatkan kinerjanya, membuatnya lebih efisien dan dapat diandalkan.memastikan bahwa ia memberikan nilai yang sangat baik untuk uang.
Ini Solid Bronze Bearing Gun Metal Bush Bearing Untuk Bagian Pompa Beton memiliki ketahanan kejut yang sangat baik, menjadikannya ideal untuk digunakan dalam aplikasi yang rentan terhadap dampak berat.Produk ini dirancang untuk menahan kondisi ekstremProduk ini tersedia dalam berbagai ukuran untuk memenuhi berbagai kebutuhan industri yang berbeda.
Bantalan solid aluminium perunggu terbuat dari paduan perunggu CuAl10Ni5Fe5, dengan minyak ditambahkan ke alur minyak..Penambahan aluminium, nikel, dan besi dalam komposisi paduan meningkatkan ketahanan korosi, membuatnya cocok untuk aplikasi di lingkungan yang keras.meningkatkan ketahanan haus dan umur bantalan.
| Keakuratan | Tinggi |
| Aplikasi | Beban Tinggi, Kecepatan Rendah |
| Koefisien gesekan | Rendah |
| Kisaran suhu | Hingga 300°C |
| Kekerasan | >HB230 |
| Bahan | C86300,SAE430 Solid Bronze Bearing, CuZn25Al6Fe3Mn3, CuAl10Ni5Fe5, CuSn5Pb5Zn5, CuSn7Zn4Pb7, CuSn12 Tin Cast Bronze Sleeve Bearings Anti Wear Bronze Thrust Bearing,Besi yang dilumasi minyak dengan bantalan, Timah Timah Solid Bronze Bearing CuSn5Pb5Zn5 Cast Bronze Bushing |
| Perlengkapan yang Dibutuhkan | Rendah |
| Umur panjang | Bertahan lama |
| Penggilingan | Minyak Atau Lemak |
| Ketersediaan | Desain alur minyak khusus dapat dibuat |

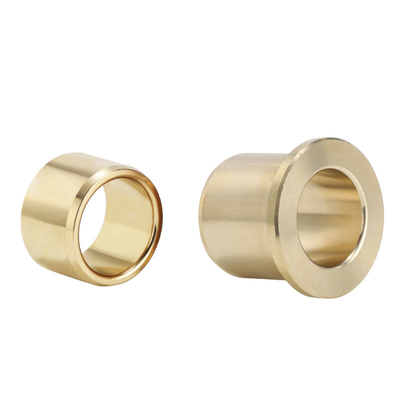

China Solid Bronze Bearing oleh VIIPLUS.COM adalah bantalan presisi tinggi yang dibuat menggunakan bahan berkualitas tinggi seperti C86300, SAE430 Solid Bronze Bearing, CuZn25Al6Fe3Mn3, CuAl10Ni5Fe5,CuSn5Pb5Zn5, CuSn7Zn4Pb7, dan CuSn12 Tin Cast Bronze Sleeve Bearings. bahan ini memberikan bantalan kekerasan tinggi (> HB230) dan koefisien gesekan rendah, membuatnya sempurna untuk berbagai aplikasi.
Solid Bronze Bearing adalah solusi ideal untuk busing bantalan kuningan yang dilumasi minyak, CuSn12 Tin Cast Bronze Sleeve Bearings anti-wear bronze thrust bearing,dan aplikasi perunggu padat nikel aluminium.
Karena presisi tinggi, Solid Bronze Bearing cocok untuk digunakan dalam mesin berat, termasuk peralatan konstruksi, mesin industri, dan mesin pertanian.Ketahanan kejutannya juga membuatnya sempurna untuk digunakan di lingkungan tekanan tinggi.
Aplikasi lain dari Solid Bronze Bearing termasuk penggunaan di pompa hidrolik, gearbox, dan sistem mekanis lainnya.Keakuratan tinggi dan koefisien gesekan rendah membuatnya ideal untuk digunakan dalam aplikasi di mana presisi dan efisiensi sangat penting.
Dibuat di CHINA, Solid Bronze Bearing oleh VIIPLUS.COM adalah bearing yang handal dan berkualitas tinggi yang dapat menahan kondisi operasi yang keras.Daya tahan dan presisi membuatnya menjadi pilihan ideal untuk berbagai aplikasi industri.
Kami High Lead Solid Bronze Bushing CuSn10Pb10 Gunmetal Bearing Untuk Cone Crusher, Bearing CuAl10Ni5Fe5,dan High Strength Solid Bronze Bearing Brass Sleeve Bushing hanya beberapa pilihan kustomisasi yang tersedia untuk memastikan kinerja optimal untuk kebutuhan spesifik Anda.
CuAl10Ni5Fe5
| Komposisi Kimia Bahan | ||||||||
| % | Cu% | Al% | Ni% | Fe% | Mn% | Sn% | Pb% | Zn% |
| Min. | 76.00 | 10.00 | 3.00 | 3.00 | 0.00 | 0.00 | 0.00 | 0.00 |
| Max. Apa yang terjadi? | 83.00 | 11.50 | 5.50 | 5.50 | 3.50 | 0.10 | 0.03 | 0.40 |

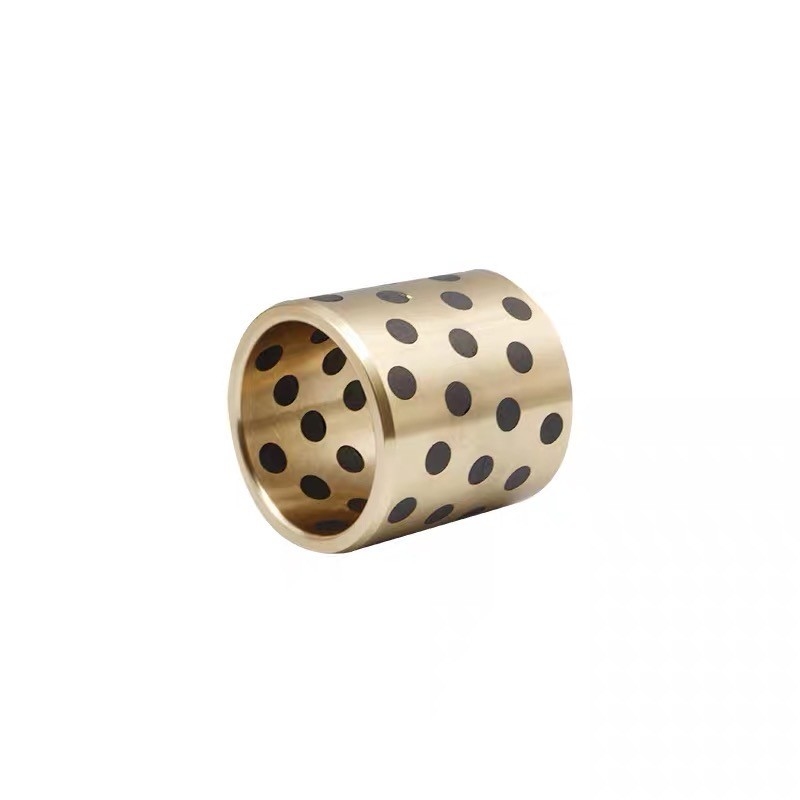

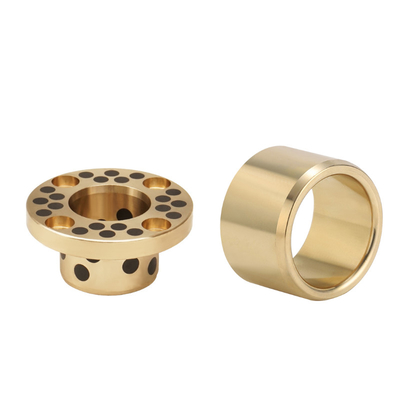

Perawatan bebas bantalan dan pohon panduan, perunggu dengan pelumas padat
| Item No. | Kode yang setara | Ø Dalam d |
Ø Luar D |
Panjang L |
||
| JDB081208 | SOB 8-12-8 | 8 | 12 | 8 | ||
| JDB061012 | SOB 6-10-12 | 6 | 10 | 12 | ||
| JDB081210 | SOB 8-12-10 | 8 | 12 | 10 | ||
| JDB081212 | SOB 8-12-12 | 8 | 12 | 12 | ||
| JDB081215 | SOB 8-12-15 | 8 | 12 | 15 | ||
| JDB101408 | SOB 10-14-8 | 10 | 14 | 8 | ||
| JDB101410 | SOB 10-14-10 | 10 | 14 | 10 | ||
| JDB101412 | SOB 10-14-12 | 10 | 14 | 12 | ||
| JDB101415 | SOB 10-14-15 | 10 | 14 | 15 | ||
| JDB101420 | SOB 10-14-20 | 10 | 14 | 20 | ||
| JDB101510 | SOB 10-15-10 | 10 | 15 | 10 | ||
| JDB121808 | SOB 12-18-8 | 12 | 18 | 8 | ||
| JDB121810 | SOB 12-18-10 | 12 | 18 | 10 | ||
| JDB121812 | SOB 12-18-12 | 12 | 18 | 12 | ||
| JDB121815 | SOB 12-18-15 | 12 | 18 | 15 | ||
| JDB121816 | SOB 12-18-16 | 12 | 18 | 16 | ||
| JDB121819 | SOB 12-18-19 | 12 | 18 | 19 | ||
| JDB121820 | SOB 12-18-20 | 12 | 18 | 20 | ||
| JDB121825 | SOB 12-18-25 | 12 | 18 | 25 | ||
| JDB121830 | SOB 12-18-30 | 12 | 18 | 30 | ||
| JDB131910 | SOB 13-19-10 | 13 | 19 | 10 | ||
| Semak Silinder Metrik | ||||||
| Perawatan bebas bantalan dan pohon panduan, perunggu dengan pelumas padat | ||||||
| Item No. | Kode yang setara | Ø Dalam d |
Ø Luar D |
Panjang L |
||
| JDB131912 | SOB 13-19-12 | 13 | 19 | 12 | ||
| JDB131915 | SOB 13-19-15 | 13 | 19 | 15 | ||
| JDB131916 | SOB 13-19-16 | 13 | 19 | 16 | ||
| JDB131920 | SOB 13-19-20 | 13 | 19 | 20 | ||
| JDB131925 | SOB 13-19-25 | 13 | 19 | 25 | ||
| JDB142010 | SOB 14-20-10 | 14 | 20 | 10 | ||
| JDB142012 | SOB 14-20-12 | 14 | 20 | 12 | ||
| JDB142015 | SOB 14-20-15 | 14 | 20 | 15 | ||
| JDB142020 | SOB 14-20-20 | 14 | 20 | 20 | ||
| JDB142025 | SOB 14-20-25 | 14 | 20 | 25 | ||
| JDB142030 | SOB 14-20-30 | 14 | 20 | 30 | ||
| JDB152110 | SOB 15-21-10 | 15 | 21 | 10 | ||
| JDB152112 | SOB 15-21-12 | 15 | 21 | 12 | ||
| JDB152115 | SOB 15-21-15 | 15 | 21 | 15 | ||
| JDB152116 | SOB 15-21-16 | 15 | 21 | 16 | ||
| JDB152120 | SOB 15-21-20 | 15 | 21 | 20 | ||
| JDB152125 | SOB 15-21-25 | 15 | 21 | 25 | ||
| JDB152130 | SOB 15-21-30 | 15 | 21 | 30 | ||
| JDB162210 | SOB 16-22-10 | 16 | 22 | 10 | ||
| JDB162212 | SOB 16-22-12 | 16 | 22 | 12 | ||
| JDB162215 | SOB 16-22-15 | 16 | 22 | 15 | ||
| JDB162216 | SOB 16-22-16 | 16 | 22 | 16 | ||
| JDB162219 | SOB 16-22-19 | 16 | 22 | 19 | ||
| JDB162220 | SOB 16-22-20 | 16 | 22 | 20 | ||
| JDB162225 | SOB 16-22-25 | 16 | 22 | 25 | ||
| JDB162230 | SOB 16-22-30 | 16 | 22 | 30 | ||
| JDB162235 | SOB 16-22-35 | 16 | 22 | 35 | ||
| JDB162240 | SOB 16-22-40 | 16 | 22 | 40 | ||
| JDB172315 | SOB 17-23-15 | 17 | 23 | 15 | ||
| JDB182410 | SOB 18-24-10 | 18 | 24 | 10 | ||
| JDB182412 | SOB 18-24-12 | 18 | 24 | 12 | ||
| JDB182415 | SOB 18-24-15 | 18 | 24 | 15 | ||
| JDB182416 | SOB 18-24-16 | 18 | 24 | 16 | ||
| JDB182420 | SOB 18-24-20 | 18 | 24 | 20 | ||
| JDB182425 | SOB 18-24-25 | 18 | 24 | 25 | ||
| JDB182430 | SOB 18-24-30 | 18 | 24 | 30 | ||
| JDB182435 | SOB 18-24-35 | 18 | 24 | 35 | ||
| JDB182440 | SOB 18-24-40 | 18 | 24 | 40 | ||
| JDB192615 | SOB 19-26-15 | 19 | 26 | 15 | ||
| JDB192620 | SOB 19-26-20 | 19 | 26 | 20 | ||
| JDB202810 | SOB 20-28-10 | 20 | 28 | 10 | ||
| JDB202812 | SOB 20-28-12 | 20 | 28 | 12 | ||
| JDB202815 | SOB 20-28-15 | 20 | 28 | 15 | ||
| JDB202816 | SOB 20-28-16 | 20 | 28 | 16 | ||
| JDB202819 | SOB 20-28-19 | 20 | 28 | 19 | ||
| JDB202820 | SOB 20-28-20 | 20 | 28 | 20 | ||
| Semak Silinder Metrik | ||||||
| Perawatan bebas bantalan dan pohon panduan, perunggu dengan pelumas padat | ||||||
| Item No. | Kode yang setara | Ø Dalam d |
Ø Luar D |
Panjang L |
||
| JDB202825 | SOB 20-28-25 | 20 | 28 | 25 | ||
| JDB202830 | SOB 20-28-30 | 20 | 28 | 30 | ||
| JDB202835 | SOB 20-28-35 | 20 | 28 | 35 | ||
| JDB202840 | SOB 20-28-40 | 20 | 28 | 40 | ||
| JDB202850 | SOB 20-28-50 | 20 | 28 | 50 | ||
| JDB203010 | SOB 20-30-10 | 20 | 30 | 10 | ||
| JDB203012 | SOB 20-30-12 | 20 | 30 | 12 | ||
| JDB203015 | SOB 20-30-15 | 20 | 30 | 15 | ||
| JDB203016 | SOB 20-30-16 | 20 | 30 | 16 | ||
| JDB203020 | SOB 20-30-20 | 20 | 30 | 20 | ||
| JDB203025 | SOB 20-30-25 | 20 | 30 | 25 | ||
| JDB203030 | SOB 20-30-30 | 20 | 30 | 30 | ||
| JDB203035 | SOB 20-30-35 | 20 | 30 | 35 | ||
| JDB203040 | SOB 20-30-40 | 20 | 30 | 40 | ||
| JDB203070 | SOB 20-30-70 | 20 | 30 | 70 | ||
| JDB223212 | SOB 22-32-12 | 22 | 32 | 12 | ||
| JDB223215 | SOB 22-32-15 | 22 | 32 | 15 | ||
| JDB223220 | SOB 22-32-20 | 22 | 32 | 20 | ||
| JDB223225 | SOB 22-32-25 | 22 | 32 | 25 | ||
| JDB253312 | SOB 25-33-12 | 25 | 33 | 12 | ||
| JDB253315 | SOB 25-33-15 | 25 | 33 | 15 | ||
| JDB253316 | SOB 25-33-16 | 25 | 33 | 16 | ||
| JDB253320 | SOB 25-33-20 | 25 | 33 | 20 | ||
| JDB253325 | SOB 25-33-25 | 25 | 33 | 25 | ||
| JDB253330 | SOB 25-33-30 | 25 | 33 | 30 | ||
| JDB253335 | SOB 25-33-35 | 25 | 33 | 35 | ||
| JDB253340 | SOB 25-33-40 | 25 | 33 | 40 | ||
| JDB253350 | SOB 25-33-50 | 25 | 33 | 50 | ||
| JDB253360 | SOB 25-33-60 | 25 | 33 | 60 | ||
| JDB253512 | SOB 25-35-12 | 25 | 35 | 12 | ||
| JDB253515 | SOB 25-35-15 | 25 | 35 | 15 | ||
| JDB253516 | SOB 25-35-16 | 25 | 35 | 16 | ||
| JDB253520 | SOB 25-35-20 | 25 | 35 | 20 | ||
| JDB253525 | SOB 25-35-25 | 25 | 35 | 25 | ||
| JDB253530 | SOB 25-35-30 | 25 | 35 | 30 | ||
| JDB253535 | SOB 25-35-35 | 25 | 35 | 35 | ||
| JDB253540 | SOB 25-35-40 | 25 | 35 | 40 | ||
| JDB253550 | SOB 25-35-50 | 25 | 35 | 50 | ||
| JDB283820 | SOB 28-38-20 | 28 | 38 | 20 | ||
| JDB283825 | SOB 28-38-25 | 28 | 38 | 25 | ||
| JDB283830 | SOB 28-38-30 | 28 | 38 | 30 | ||
| JDB283840 | SOB 28-38-40 | 28 | 38 | 40 | ||
| JDB303812 | SOB 30-38-12 | 30 | 38 | 12 | ||
| JDB303815 | SOB 30-38-15 | 30 | 38 | 15 | ||
| JDB303820 | SOB 30-38-20 | 30 | 38 | 20 | ||
| JDB303825 | SOB 30-38-25 | 30 | 38 | 25 | ||
| Semak Silinder Metrik | ||||||
| Perawatan bebas bantalan dan pohon panduan, perunggu dengan pelumas padat | ||||||
| Item No. | Kode yang setara | Ø Dalam d |
Ø Luar D |
Panjang L |
||
| JDB303830 | SOB 30-38-30 | 30 | 38 | 30 | ||
| JDB303835 | SOB 30-38-35 | 30 | 38 | 35 | ||
| JDB303840 | SOB 30-38-40 | 30 | 38 | 40 | ||
| JDB303850 | SOB 30-38-50 | 30 | 38 | 50 | ||
| JDB303860 | SOB 30-38-60 | 30 | 38 | 60 | ||
| JDB304012 | SOB 30-40-12 | 30 | 40 | 12 | ||
| JDB304015 | SOB 30-40-15 | 30 | 40 | 15 | ||
| JDB304020 | SOB 30-40-20 | 30 | 40 | 20 | ||
| JDB304025 | SOB 30-40-25 | 30 | 40 | 25 | ||
| JDB304030 | SOB 30-40-30 | 30 | 40 | 30 | ||
| JDB304035 | SOB 30-40-35 | 30 | 40 | 35 | ||
| JDB304040 | SOB 30-40-40 | 30 | 40 | 40 | ||
| JDB304050 | SOB 30-40-50 | 30 | 40 | 50 | ||
| JDB304060 | SOB 30-40-60 | 30 | 40 | 60 | ||
| JDB3,154030 | SOB 31,5-40-30 | 3,15 | 40 | 30 | ||
| JDB3,154040 | SOB 31,5-40-40 | 3,15 | 40 | 40 | ||
| JDB324215 | SOB 32-42-15 | 32 | 42 | 15 | ||
| JDB324220 | SOB 32-42-20 | 32 | 42 | 20 | ||
| JDB324230 | SOB 32-42-30 | 32 | 42 | 30 | ||
| JDB324240 | SOB 32-42-40 | 32 | 42 | 40 | ||
| JDB354420 | SOB 35-44-20 | 35 | 44 | 20 | ||
| JDB354425 | SOB 35-44-25 | 35 | 44 | 25 | ||
| JDB354430 | SOB 35-44-30 | 35 | 44 | 30 | ||
| JDB354435 | SOB 35-44-35 | 35 | 44 | 35 | ||
| JDB354440 | SOB 35-44-40 | 35 | 44 | 40 | ||
| JDB354450 | SOB 35-44-50 | 35 | 44 | 50 | ||
| JDB354460 | SOB 35-44-60 | 35 | 44 | 60 | ||
| JDB354515 | SOB 35-45-15 | 35 | 45 | 15 | ||
| JDB354520 | SOB 35-45-20 | 35 | 45 | 20 | ||
| JDB354525 | SOB 35-45-25 | 35 | 45 | 25 | ||
| JDB354530 | SOB 35-45-30 | 35 | 45 | 30 | ||
| JDB354535 | SOB 35-45-35 | 35 | 45 | 35 | ||
| JDB354540 | SOB 35-45-40 | 35 | 45 | 40 | ||
| JDB354550 | SOB 35-45-50 | 35 | 45 | 50 | ||
| JDB354560 | SOB 35-45-60 | 35 | 45 | 60 | ||
| JDB384830 | SOB 38-48-30 | 38 | 48 | 30 | ||
| JDB384840 | SOB 38-48-40 | 38 | 48 | 40 | ||
| JDB405015 | SOB 40-50-15 | 40 | 50 | 15 | ||
| JDB405020 | SOB 40-50-20 | 40 | 50 | 20 | ||
| JDB405025 | SOB 40-50-25 | 40 | 50 | 25 | ||
| JDB405030 | SOB 40-50-30 | 40 | 50 | 30 | ||
| JDB405035 | SOB 40-50-35 | 40 | 50 | 35 | ||
| JDB405040 | SOB 40-50-40 | 40 | 50 | 40 | ||
| JDB405050 | SOB 40-50-50 | 40 | 50 | 50 | ||
| JDB405060 | SOB 40-50-60 | 40 | 50 | 60 | ||
| JDB405070 | SOB 40-50-70 | 40 | 50 | 70 | ||
| Semak Silinder Metrik | ||||||
| Perawatan bebas bantalan dan pohon panduan, perunggu dengan pelumas padat | ||||||
| Item No. | Kode yang setara | Ø Dalam d |
Ø Luar D |
Panjang L |
||
| JDB405080 | SOB 40-50-80 | 40 | 50 | 80 | ||
| JDB405515 | SOB 40-55-15 | 40 | 55 | 15 | ||
| JDB405525 | SOB 40-55-25 | 40 | 55 | 25 | ||
| JDB405530 | SOB 40-55-30 | 40 | 55 | 30 | ||
| JDB405535 | SOB 40-55-35 | 40 | 55 | 35 | ||
| JDB405540 | SOB 40-55-40 | 40 | 55 | 40 | ||
| JDB405550 | SOB 40-55-50 | 40 | 55 | 50 | ||
| JDB405560 | SOB 40-55-60 | 40 | 55 | 60 | ||
| JDB455530 | SOB 45-55-30 | 45 | 55 | 30 | ||
| JDB455535 | SOB 45-55-35 | 45 | 55 | 35 | ||
| JDB455540 | SOB 45-55-40 | 45 | 55 | 40 | ||
| JDB455550 | SOB 45-55-50 | 45 | 55 | 50 | ||
| JDB455560 | SOB 45-55-60 | 45 | 55 | 60 | ||
| JDB455630 | SOB 45-56-30 | 45 | 56 | 30 | ||
| JDB455635 | SOB 45-56-35 | 45 | 56 | 35 | ||
| JDB455640 | SOB 45-56-40 | 45 | 56 | 40 | ||
| JDB455650 | SOB 45-56-50 | 45 | 56 | 50 | ||
| JDB455660 | SOB 45-56-60 | 45 | 56 | 60 | ||
| JDB456030 | SOB 45-60-30 | 45 | 60 | 30 | ||
| JDB456035 | SOB 45-60-35 | 45 | 60 | 35 | ||
| JDB456040 | SOB 45-60-40 | 45 | 60 | 40 | ||
| JDB456050 | SOB 45-60-50 | 45 | 60 | 50 | ||
| JDB456060 | SOB 45-60-60 | 45 | 60 | 60 | ||
| JDB456070 | SOB 45-60-70 | 45 | 60 | 70 | ||
| JDB456080 | SOB 45-60-80 | 45 | 60 | 80 | ||
| JDB506020 | SOB 50-60-20 | 50 | 60 | 20 | ||
| JDB506025 | SOB 50-60-25 | 50 | 60 | 25 | ||
| JDB506030 | SOB 50-60-30 | 50 | 60 | 30 | ||
| JDB506035 | SOB 50-60-35 | 50 | 60 | 35 | ||
| JDB506040 | SOB 50-60-40 | 50 | 60 | 40 | ||
| JDB506050 | SOB 50-60-50 | 50 | 60 | 50 | ||
| JDB506060 | SOB 50-60-60 | 50 | 60 | 60 | ||
| JDB506070 | SOB 50-60-70 | 50 | 60 | 70 | ||
| JDB506080 | SOB 50-60-80 | 50 | 60 | 80 | ||
| JDB506230 | SOB 50-62-30 | 50 | 62 | 30 | ||
| JDB506235 | SOB 50-62-35 | 50 | 62 | 35 | ||
| JDB506240 | SOB 50-62-40 | 50 | 62 | 40 | ||
| JDB506250 | SOB 50-62-50 | 50 | 62 | 50 | ||
| JDB506260 | SOB 50-62-60 | 50 | 62 | 60 | ||
| JDB506270 | SOB 50-62-70 | 50 | 62 | 70 | ||
| JDB506280 | SOB 50-62-80 | 50 | 62 | 80 | ||
| JDB506530 | SOB 50-65-30 | 50 | 65 | 30 | ||
| JDB506540 | SOB 50-65-40 | 50 | 65 | 40 | ||
| JDB506550 | SOB 50-65-50 | 50 | 65 | 50 | ||
| JDB506560 | SOB 50-65-60 | 50 | 65 | 60 | ||
| JDB506570 | SOB 50-65-70 | 50 | 65 | 70 | ||
| Semak Silinder Metrik | ||||||
| Perawatan bebas bantalan dan pohon panduan, perunggu dengan pelumas padat | ||||||
| Item No. | Kode yang setara | Ø Dalam d |
Ø Luar D |
Panjang L |
||
| JDB506580 | SOB 50-65-80 | 50 | 65 | 80 | ||
| JDB5065100 | SOB 50-65-100 | 50 | 65 | 100 | ||
| JDB557030 | SOB 55-70-30 | 55 | 70 | 30 | ||
| JDB557035 | SOB 55-70-35 | 55 | 70 | 35 | ||
| JDB557040 | SOB 55-70-40 | 55 | 70 | 40 | ||
| JDB557050 | SOB 55-70-50 | 55 | 70 | 50 | ||
| JDB557060 | SOB 55-70-60 | 55 | 70 | 60 | ||
| JDB557070 | SOB 55-70-70 | 55 | 70 | 70 | ||
| JDB607430 | SOB 60-74-30 | 60 | 74 | 30 | ||
| JDB607435 | SOB 60-74-35 | 60 | 74 | 35 | ||
| JDB607440 | SOB 60-74-40 | 60 | 74 | 40 | ||
| JDB607450 | SOB 60-74-50 | 60 | 74 | 50 | ||
| JDB607460 | SOB 60-74-60 | 60 | 74 | 60 | ||
| JDB607470 | SOB 60-74-70 | 60 | 74 | 70 | ||
| JDB607480 | SOB 60-74-80 | 60 | 74 | 80 | ||
| JDB6074100 | SOB 60-74-100 | 60 | 74 | 100 | ||
| JDB607530 | SOB 60-75-30 | 60 | 75 | 30 | ||
| JDB607535 | SOB 60-75-35 | 60 | 75 | 35 | ||
| JDB607540 | SOB 60-75-40 | 60 | 75 | 40 | ||
| JDB607550 | SOB 60-75-50 | 60 | 75 | 50 | ||
| JDB607560 | SOB 60-75-60 | 60 | 75 | 60 | ||
| JDB607570 | SOB 60-75-70 | 60 | 75 | 70 | ||
| JDB607580 | SOB 60-75-80 | 60 | 75 | 80 | ||
| JDB6075100 | SOB 60-75-100 | 60 | 75 | 100 | ||
| JDB637560 | SOB 63-75-60 | 63 | 75 | 60 | ||
| JDB637570 | SOB 63-75-70 | 63 | 75 | 70 | ||
| JDB637580 | SOB 63-75-80 | 63 | 75 | 80 | ||
| JDB658040 | SOB 65-80-40 | 65 | 80 | 40 | ||
| JDB658050 | SOB 65-80-50 | 65 | 80 | 50 | ||
| JDB658060 | SOB 65-80-60 | 65 | 80 | 60 | ||
| JDB658070 | SOB 65-80-70 | 65 | 80 | 70 | ||
| JDB658080 | SOB 65-80-80 | 65 | 80 | 80 | ||
| JDB708530 | SOB 70-85-30 | 70 | 85 | 30 | ||
| JDB708535 | SOB 70-85-35 | 70 | 85 | 35 | ||
| JDB708540 | SOB 70-85-40 | 70 | 85 | 40 | ||
| JDB708550 | SOB 70-85-50 | 70 | 85 | 50 | ||
| JDB708560 | SOB 70-85-60 | 70 | 85 | 60 | ||
| JDB708570 | SOB 70-85-70 | 70 | 85 | 70 | ||
| JDB708580 | SOB 70-85-80 | 70 | 85 | 80 | ||
| JDB7085100 | SOB 70-85-100 | 70 | 85 | 100 | ||
| JDB709050 | SOB 70-90-50 | 70 | 90 | 50 | ||
| JDB709060 | SOB 70-90-60 | 70 | 90 | 60 | ||
| JDB709070 | SOB 70-90-70 | 70 | 90 | 70 | ||
| JDB709080 | SOB 70-90-80 | 70 | 90 | 80 | ||
| JDB7090100 | SOB 70-90-100 | 70 | 90 | 100 | ||
| JDB759050 | SOB 75-90-50 | 75 | 90 | 50 | ||
| Semak Silinder Metrik | ||||||
| Perawatan bebas bantalan dan pohon panduan, perunggu dengan pelumas padat | ||||||
| Item No. | Kode yang setara | Ø Dalam d |
Ø Luar D |
Panjang L |
||
| JDB759060 | SOB 75-90-60 | 75 | 90 | 60 | ||
| JDB759070 | SOB 75-90-70 | 75 | 90 | 70 | ||
| JDB759080 | SOB 75-90-80 | 75 | 90 | 80 | ||
| JDB7590100 | SOB 75-90-100 | 75 | 90 | 100 | ||
| JDB759560 | SOB 75-95-60 | 75 | 95 | 60 | ||
| JDB759570 | SOB 75-95-70 | 75 | 95 | 70 | ||
| JDB759580 | SOB 75-95-80 | 75 | 95 | 80 | ||
| JDB7595100 | SOB 75-95-100 | 75 | 95 | 100 | ||
| JDB809620 | SOB 80-96-20 | 80 | 96 | 20 | ||
| JDB809640 | SOB 80-96-40 | 80 | 96 | 40 | ||
| JDB809650 | SOB 80-96-50 | 80 | 96 | 50 | ||
| JDB809660 | SOB 80-96-60 | 80 | 96 | 60 | ||
| JDB809670 | SOB 80-96-70 | 80 | 96 | 70 | ||
| JDB809680 | SOB 80-96-80 | 80 | 96 | 80 | ||
| JDB8096100 | SOB 80-96-100 | 80 | 96 | 100 | ||
| JDB8096120 | SOB 80-96-120 | 80 | 96 | 120 | ||
| JDB8010040 | SOB 80-100-40 | 80 | 100 | 40 | ||
| JDB8010050 | SOB 80-100-50 | 80 | 100 | 50 | ||
| JDB8010060 | SOB 80-100-60 | 80 | 100 | 60 | ||
| JDB8010070 | SOB 80-100-70 | 80 | 100 | 70 | ||
| JDB8010080 | SOB 80-100-80 | 80 | 100 | 80 | ||
| JDB80100100 | SOB 80-100-100 | 80 | 100 | 100 | ||
| JDB80100120 | SOB 80-100-120 | 80 | 100 | 120 | ||
| JDB80100140 | SOB 80-100-140 | 80 | 100 | 140 | ||
| JDB8510025 | SOB 85-100-25 | 85 | 100 | 25 | ||
| JDB8510060 | SOB 85-100-60 | 85 | 100 | 60 | ||
| JDB8510080 | SOB 85-100-80 | 85 | 100 | 80 | ||
| JDB9011030 | SOB 90-110-30 | 90 | 110 | 30 | ||
| JDB9011050 | SOB 90-110-50 | 90 | 110 | 50 | ||
| JDB9011060 | SOB 90-110-60 | 90 | 110 | 60 | ||
| JDB9011070 | SOB 90-110-70 | 90 | 110 | 70 | ||
| JDB9011080 | SOB 90-110-80 | 90 | 110 | 80 | ||
| JDB9011090 | SOB 90-110-90 | 90 | 110 | 90 | ||
| JDB90110100 | SOB 90-110-100 | 90 | 110 | 100 | ||
| JDB90110120 | SOB 90-110-120 | 90 | 110 | 120 | ||
| JDB100115100 | SOB 100-115-100 | 100 | 115 | 100 | ||
| JDB10012040 | SOB 100-120-40 | 100 | 120 | 40 | ||
| JDB10012050 | SOB 100-120-50 | 100 | 120 | 50 | ||
| JDB10012060 | SOB 100-120-60 | 100 | 120 | 60 | ||
| JDB10012070 | SOB 100-120-70 | 100 | 120 | 70 | ||
| JDB10012080 | SOB 100-120-80 | 100 | 120 | 80 | ||
| JDB10012090 | SOB 100-120-90 | 100 | 120 | 90 | ||
| JDB100120100 | SOB 100-120-100 | 100 | 120 | 100 | ||
| JDB100120120 | SOB 100-120-120 | 100 | 120 | 120 | ||
| JDB100120140 | SOB 100-120-140 | 100 | 120 | 140 | ||
| JDB11013050 | SOB 110-130-50 | 110 | 130 | 50 | ||
| Semak Silinder Metrik | ||||||
| Perawatan bebas bantalan dan pohon panduan, perunggu dengan pelumas padat | ||||||
| Item No. | Kode yang setara | Ø Dalam d |
Ø Luar D |
Panjang L |
||
| JDB11013070 | SOB 110-130-70 | 110 | 130 | 70 | ||
| JDB11013080 | SOB 110-130-80 | 110 | 130 | 80 | ||
| JDB110130100 | SOB 110-130-100 | 110 | 130 | 100 | ||
| JDB110130120 | SOB 110-130-120 | 110 | 130 | 120 | ||
| JDB12014070 | SOB 120-140-70 | 120 | 140 | 70 | ||
| JDB12014080 | SOB 120-140-80 | 120 | 140 | 80 | ||
| JDB12014090 | SOB 120-140-90 | 120 | 140 | 90 | ||
| JDB120140100 | SOB 120-140-100 | 120 | 140 | 100 | ||
| JDB120140120 | SOB 120-140-120 | 120 | 140 | 120 | ||
| JDB120140140 | SOB 120-140-140 | 120 | 140 | 140 | ||
| JDB125145100 | SOB 125-145-100 | 125 | 145 | 100 | ||
| JDB125145120 | SOB 125-145-120 | 125 | 145 | 120 | ||
| JDB13015080 | SOB 130-150-80 | 130 | 150 | 80 | ||
| JDB130150100 | SOB 130-150-100 | 130 | 150 | 100 | ||
| JDB130150130 | SOB 130-150-130 | 130 | 150 | 130 | ||
| JDB140160100 | SOB 140-160-100 | 140 | 160 | 100 | ||
| JDB140160140 | SOB 140-160-140 | 140 | 160 | 140 | ||
| JDB150170100 | SOB 150-170-100 | 150 | 170 | 100 | ||
| JDB150170150 | SOB 150-170-150 | 150 | 170 | 150 | ||
| JDB16018080 | SOB 160-180-80 | 160 | 180 | 80 | ||
| JDB160180100 | SOB 160-180-100 | 160 | 180 | 100 | ||
| JDB160180150 | SOB 160-180-150 | 160 | 180 | 150 | ||
| JDB170190100 | SOB 170-190-100 | 170 | 190 | 100 | ||
| JDB170190150 | SOB 170-190-150 | 170 | 190 | 150 | ||
| JDB180200100 | SOB 180-200-100 | 180 | 200 | 100 | ||
| JDB180200150 | SOB 180-200-150 | 180 | 200 | 150 | ||
| JDB190210100 | SOB 190-210-100 | 190 | 210 | 100 | ||
| JDB190210150 | SOB 190-210-150 | 190 | 210 | 150 | ||
| JDB200230150 | SOB 200-230-150 | 200 | 230 | 150 | ||
| JDB200230200 | SOB 200-230-200 | 200 | 230 | 200 | ||
Produk Solid Bronze Bearing kami dilengkapi dengan dukungan teknis dan layanan yang komprehensif untuk memastikan kinerja dan kepuasan pelanggan yang optimal.
Kami menawarkan:
Tim teknis kami yang berpengalaman berkomitmen untuk memberikan dukungan yang cepat dan andal untuk membantu pelanggan kami mendapatkan hasil maksimal dari produk Solid Bronze Bearing kami.
T: Apa nama merek produk ini?
A: Nama merek produk ini adalah VIIPLUS.COM.
T: Apa nomor model produk ini?
A: Nomor model produk ini adalah China Solid Bronze Bearing.
T: Di mana produk ini diproduksi?
A: Produk ini dibuat di Cina.
T: Apa ukuran produk ini?
A: Dimensi produk ini tergantung pada ukuran spesifik yang dipesan. Silakan lihat spesifikasi produk untuk informasi lebih lanjut.
T: Apa jenis aplikasi yang cocok untuk produk ini?
A: Produk ini cocok untuk berbagai aplikasi, termasuk mesin berat, otomotif, konstruksi, dan peralatan laut.
Video
