| Nama merek: | VIIPLUS.COM |
| Nomor Model: | China Solid Bronze Bearing |

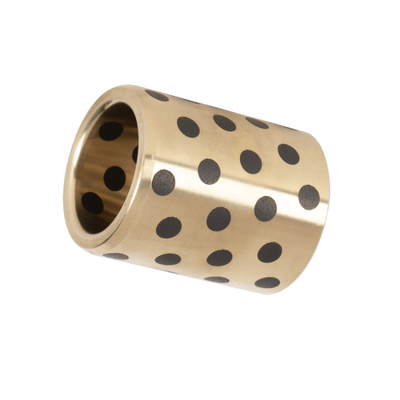

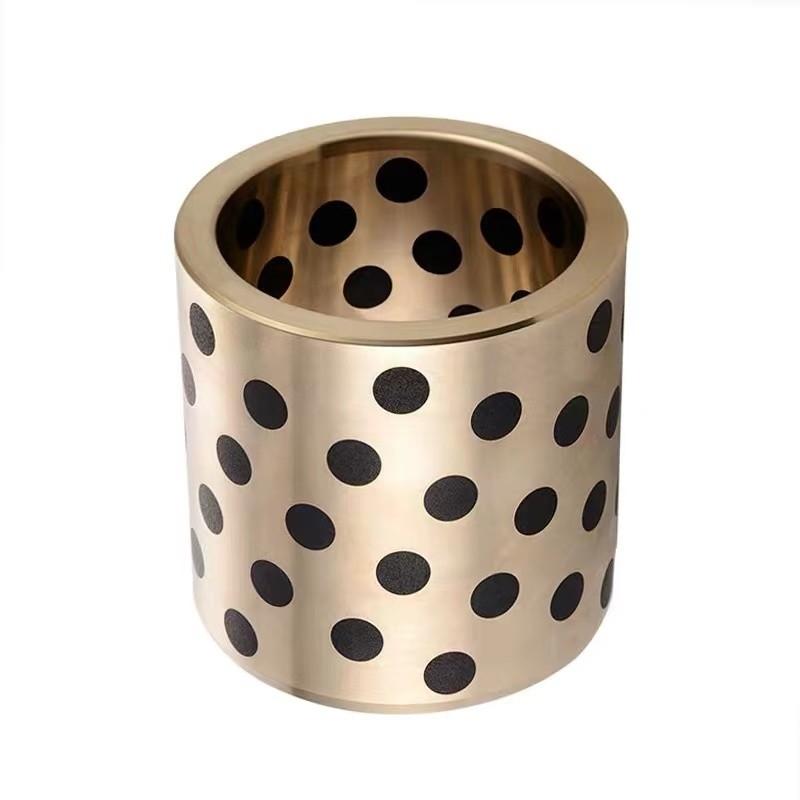

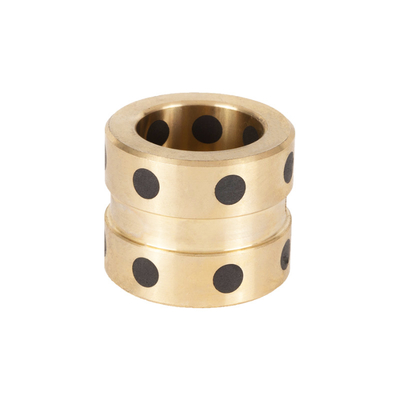

Bantalan Perunggu Padat kami terbuat dari berbagai bahan termasuk C86300, SAE430, CuZn25Al6Fe3Mn3, CuAl10Ni5Fe5, CuSn5Pb5Zn5, CuSn7Zn4Pb7, dan CuSn12 Tin Cast Bronze Sleeve Bearings.Bahan-bahan ini dikenal karena kekuatan dan daya tahan yang tinggi, membuat mereka ideal untuk aplikasi tugas berat.
CuZn25Al6Fe3Mn3 Solid Bronze Bushing kami adalah pilihan populer di kalangan pelanggan. Bahan ini memiliki tingkat kekerasan tinggi > HB230, sehingga tahan terhadap keausan dan robek.membuatnya sempurna untuk digunakan di lingkungan yang keras.
CuSn12 Tin Cast Bronze Sleeve Bearings yang kami tawarkan juga merupakan pilihan yang bagus untuk aplikasi yang membutuhkan sifat anti-wear.yang dikenal karena kekuatan dan ketahanan ausnya yang sangat baik.
Bahan ini dikenal karena kekuatan tinggi, ketahanan korosi, dan sifat anti-wear.Ini adalah pilihan yang ideal untuk aplikasi yang membutuhkan tingkat ketahanan dan keandalan yang tinggi.
Bantalan Perunggu Padat kami memiliki kisaran suhu hingga 300 ° C, membuatnya cocok untuk digunakan dalam aplikasi yang menuntut yang membutuhkan ketahanan suhu tinggi.Mereka adalah pilihan yang sangat baik untuk aplikasi yang membutuhkan tingkat tinggi kinerja dan keandalan.
Secara keseluruhan, Solid Bronze Bearings kami adalah pilihan yang bagus bagi pelanggan yang membutuhkan solusi bantalan yang handal dan tahan lama.kami dapat menyediakan bantalan yang sempurna untuk aplikasi spesifik AndaHubungi kami hari ini untuk mempelajari lebih lanjut tentang Solid Bronze Bearings kami dan bagaimana kami dapat membantu Anda menemukan solusi yang sempurna untuk kebutuhan Anda.
Memperkenalkan bantalan logam gunmetal CuSn10Pb10 untuk mesin penghancur kerucut. bantalan ini terbuat dari bantalan CuAl10Ni5Fe5 dan sangat cocok untuk setiap beban tinggi,aplikasi kecepatan rendahProduk ini berasal dari Cina, produk ini tahan lama dan membutuhkan perawatan minimal.Dapatkan tangan Anda pada Tinggi Lead Solid Bronze Bushing CuSn10Pb10 Gunmetal Bearing Untuk Cone Crusher hari ini!
| Atribut produk | Rincian |
|---|---|
| Standar | DIN 1850 / ISO 4379 |
| Koefisien gesekan | Rendah |
| Keakuratan | Tinggi |
| Bahan | C86300,SAE430 Solid Bronze Bearing, CuZn25Al6Fe3Mn3, CuAl10Ni5Fe5, CuSn5Pb5Zn5, CuSn7Zn4Pb7, CuSn12 Tin Cast Bronze Sleeve Bearings |
| Penggilingan | Minyak Atau Lemak |
| Kekerasan | >HB230 |
| Aplikasi | Beban Tinggi, Kecepatan Rendah |
| Umur panjang | Bertahan lama |
| Perlengkapan yang Dibutuhkan | Rendah |
| Ketersediaan | Desain alur minyak khusus dapat dibuat |
Oil Lubricated Brass Bearing Bushing, High Leaded Solid Bronze Bushing CuSn10Pb10 Gunmetal Bearing For Cone Crusher, CuSn12 Tin Cast Bronze Sleeve Bearings Anti Wear Bronze Thrust Bearing
VIIPLUS.COM Solid Bronze Bearing adalah bantalan presisi tinggi yang dibuat di Cina dan sesuai dengan standar DIN 1850 dan ISO 4379.,CuAl10Ni5Fe5, CuSn5Pb5Zn5, CuSn7Zn4Pb7, dan CuSn12 Tin Cast Bronze Sleeve Bearings material, memiliki kekuatan tinggi dan dapat menahan suhu tinggi hingga 300 °C.
Ini Oil Lubricated Brass Bearing Bushing memiliki berbagai aplikasi di berbagai industri.di mana bantalan perlu menahan beban tinggi dan suhu tinggiHal ini juga dapat digunakan dalam peralatan kapal, di mana ia dapat menahan korosi dan keausan yang disebabkan oleh air laut dan semprotan garam.
Skenario aplikasi lain untuk High Strength Solid Bronze Bearing Brass Sleeve Bushing adalah di industri otomotif.dimana dapat memberikan presisi tinggi dan daya tahanHal ini juga cocok untuk digunakan dalam pompa dan kompresor, di mana ia dapat memberikan kinerja yang dapat diandalkan dan gesekan rendah.
Gunmetal Centrifugal Solid Bronze Bearing CuSn7Zn4Pb7 Cast Bronze Bushing juga ideal untuk digunakan dalam peralatan pertanian, seperti traktor dan mesin panen,di mana ia dapat menahan kondisi yang keras dari lapanganSelain itu, dapat digunakan dalam peralatan pengolahan makanan, di mana dapat memenuhi persyaratan kebersihan dan kebersihan.
Secara keseluruhan, VIIPLUS.COM Solid Bronze Bearing adalah produk serbaguna dan andal yang dapat digunakan dalam berbagai kesempatan dan skenario.Pertanian, atau pengolahan makanan, bantalan ini dapat memberikan presisi tinggi, daya tahan, dan gesekan rendah.
Dengan layanan kustomisasi kami, Anda dapat memilih dari berbagai pilihan termasuk bantalan kuningan yang dilumasi minyak kuningan, bantalan bantalan kuningan yang dilumasi minyak, dan bantalan kuningan padat bola.Tidak peduli apa yang dibutuhkan aplikasi Anda, kami dapat menyesuaikan produk kami untuk memenuhi kebutuhan spesifik Anda.
Perawatan bebas bantalan dan pohon panduan, perunggu dengan pelumas padat
| Item No. | Kode yang setara | Ø Dalam d |
Ø Luar D |
Panjang L |
||
| JDB081208 | SOB 8-12-8 | 8 | 12 | 8 | ||
| JDB061012 | SOB 6-10-12 | 6 | 10 | 12 | ||
| JDB081210 | SOB 8-12-10 | 8 | 12 | 10 | ||
| JDB081212 | SOB 8-12-12 | 8 | 12 | 12 | ||
| JDB081215 | SOB 8-12-15 | 8 | 12 | 15 | ||
| JDB101408 | SOB 10-14-8 | 10 | 14 | 8 | ||
| JDB101410 | SOB 10-14-10 | 10 | 14 | 10 | ||
| JDB101412 | SOB 10-14-12 | 10 | 14 | 12 | ||
| JDB101415 | SOB 10-14-15 | 10 | 14 | 15 | ||
| JDB101420 | SOB 10-14-20 | 10 | 14 | 20 | ||
| JDB101510 | SOB 10-15-10 | 10 | 15 | 10 | ||
| JDB121808 | SOB 12-18-8 | 12 | 18 | 8 | ||
| JDB121810 | SOB 12-18-10 | 12 | 18 | 10 | ||
| JDB121812 | SOB 12-18-12 | 12 | 18 | 12 | ||
| JDB121815 | SOB 12-18-15 | 12 | 18 | 15 | ||
| JDB121816 | SOB 12-18-16 | 12 | 18 | 16 | ||
| JDB121819 | SOB 12-18-19 | 12 | 18 | 19 | ||
| JDB121820 | SOB 12-18-20 | 12 | 18 | 20 | ||
| JDB121825 | SOB 12-18-25 | 12 | 18 | 25 | ||
| JDB121830 | SOB 12-18-30 | 12 | 18 | 30 | ||
| JDB131910 | SOB 13-19-10 | 13 | 19 | 10 | ||
| Semak Silinder Metrik | ||||||
| Perawatan bebas bantalan dan pohon panduan, perunggu dengan pelumas padat | ||||||
| Item No. | Kode yang setara | Ø Dalam d |
Ø Luar D |
Panjang L |
||
| JDB131912 | SOB 13-19-12 | 13 | 19 | 12 | ||
| JDB131915 | SOB 13-19-15 | 13 | 19 | 15 | ||
| JDB131916 | SOB 13-19-16 | 13 | 19 | 16 | ||
| JDB131920 | SOB 13-19-20 | 13 | 19 | 20 | ||
| JDB131925 | SOB 13-19-25 | 13 | 19 | 25 | ||
| JDB142010 | SOB 14-20-10 | 14 | 20 | 10 | ||
| JDB142012 | SOB 14-20-12 | 14 | 20 | 12 | ||
| JDB142015 | SOB 14-20-15 | 14 | 20 | 15 | ||
| JDB142020 | SOB 14-20-20 | 14 | 20 | 20 | ||
| JDB142025 | SOB 14-20-25 | 14 | 20 | 25 | ||
| JDB142030 | SOB 14-20-30 | 14 | 20 | 30 | ||
| JDB152110 | SOB 15-21-10 | 15 | 21 | 10 | ||
| JDB152112 | SOB 15-21-12 | 15 | 21 | 12 | ||
| JDB152115 | SOB 15-21-15 | 15 | 21 | 15 | ||
| JDB152116 | SOB 15-21-16 | 15 | 21 | 16 | ||
| JDB152120 | SOB 15-21-20 | 15 | 21 | 20 | ||
| JDB152125 | SOB 15-21-25 | 15 | 21 | 25 | ||
| JDB152130 | SOB 15-21-30 | 15 | 21 | 30 | ||
| JDB162210 | SOB 16-22-10 | 16 | 22 | 10 | ||
| JDB162212 | SOB 16-22-12 | 16 | 22 | 12 | ||
| JDB162215 | SOB 16-22-15 | 16 | 22 | 15 | ||
| JDB162216 | SOB 16-22-16 | 16 | 22 | 16 | ||
| JDB162219 | SOB 16-22-19 | 16 | 22 | 19 | ||
| JDB162220 | SOB 16-22-20 | 16 | 22 | 20 | ||
| JDB162225 | SOB 16-22-25 | 16 | 22 | 25 | ||
| JDB162230 | SOB 16-22-30 | 16 | 22 | 30 | ||
| JDB162235 | SOB 16-22-35 | 16 | 22 | 35 | ||
| JDB162240 | SOB 16-22-40 | 16 | 22 | 40 | ||
| JDB172315 | SOB 17-23-15 | 17 | 23 | 15 | ||
| JDB182410 | SOB 18-24-10 | 18 | 24 | 10 | ||
| JDB182412 | SOB 18-24-12 | 18 | 24 | 12 | ||
| JDB182415 | SOB 18-24-15 | 18 | 24 | 15 | ||
| JDB182416 | SOB 18-24-16 | 18 | 24 | 16 | ||
| JDB182420 | SOB 18-24-20 | 18 | 24 | 20 | ||
| JDB182425 | SOB 18-24-25 | 18 | 24 | 25 | ||
| JDB182430 | SOB 18-24-30 | 18 | 24 | 30 | ||
| JDB182435 | SOB 18-24-35 | 18 | 24 | 35 | ||
| JDB182440 | SOB 18-24-40 | 18 | 24 | 40 | ||
| JDB192615 | SOB 19-26-15 | 19 | 26 | 15 | ||
| JDB192620 | SOB 19-26-20 | 19 | 26 | 20 | ||
| JDB202810 | SOB 20-28-10 | 20 | 28 | 10 | ||
| JDB202812 | SOB 20-28-12 | 20 | 28 | 12 | ||
| JDB202815 | SOB 20-28-15 | 20 | 28 | 15 | ||
| JDB202816 | SOB 20-28-16 | 20 | 28 | 16 | ||
| JDB202819 | SOB 20-28-19 | 20 | 28 | 19 | ||
| JDB202820 | SOB 20-28-20 | 20 | 28 | 20 | ||
| Semak Silinder Metrik | ||||||
| Perawatan bebas bantalan dan pohon panduan, perunggu dengan pelumas padat | ||||||
| Item No. | Kode yang setara | Ø Dalam d |
Ø Luar D |
Panjang L |
||
| JDB202825 | SOB 20-28-25 | 20 | 28 | 25 | ||
| JDB202830 | SOB 20-28-30 | 20 | 28 | 30 | ||
| JDB202835 | SOB 20-28-35 | 20 | 28 | 35 | ||
| JDB202840 | SOB 20-28-40 | 20 | 28 | 40 | ||
| JDB202850 | SOB 20-28-50 | 20 | 28 | 50 | ||
| JDB203010 | SOB 20-30-10 | 20 | 30 | 10 | ||
| JDB203012 | SOB 20-30-12 | 20 | 30 | 12 | ||
| JDB203015 | SOB 20-30-15 | 20 | 30 | 15 | ||
| JDB203016 | SOB 20-30-16 | 20 | 30 | 16 | ||
| JDB203020 | SOB 20-30-20 | 20 | 30 | 20 | ||
| JDB203025 | SOB 20-30-25 | 20 | 30 | 25 | ||
| JDB203030 | SOB 20-30-30 | 20 | 30 | 30 | ||
| JDB203035 | SOB 20-30-35 | 20 | 30 | 35 | ||
| JDB203040 | SOB 20-30-40 | 20 | 30 | 40 | ||
| JDB203070 | SOB 20-30-70 | 20 | 30 | 70 | ||
| JDB223212 | SOB 22-32-12 | 22 | 32 | 12 | ||
| JDB223215 | SOB 22-32-15 | 22 | 32 | 15 | ||
| JDB223220 | SOB 22-32-20 | 22 | 32 | 20 | ||
| JDB223225 | SOB 22-32-25 | 22 | 32 | 25 | ||
| JDB253312 | SOB 25-33-12 | 25 | 33 | 12 | ||
| JDB253315 | SOB 25-33-15 | 25 | 33 | 15 | ||
| JDB253316 | SOB 25-33-16 | 25 | 33 | 16 | ||
| JDB253320 | SOB 25-33-20 | 25 | 33 | 20 | ||
| JDB253325 | SOB 25-33-25 | 25 | 33 | 25 | ||
| JDB253330 | SOB 25-33-30 | 25 | 33 | 30 | ||
| JDB253335 | SOB 25-33-35 | 25 | 33 | 35 | ||
| JDB253340 | SOB 25-33-40 | 25 | 33 | 40 | ||
| JDB253350 | SOB 25-33-50 | 25 | 33 | 50 | ||
| JDB253360 | SOB 25-33-60 | 25 | 33 | 60 | ||
| JDB253512 | SOB 25-35-12 | 25 | 35 | 12 | ||
| JDB253515 | SOB 25-35-15 | 25 | 35 | 15 | ||
| JDB253516 | SOB 25-35-16 | 25 | 35 | 16 | ||
| JDB253520 | SOB 25-35-20 | 25 | 35 | 20 | ||
| JDB253525 | SOB 25-35-25 | 25 | 35 | 25 | ||
| JDB253530 | SOB 25-35-30 | 25 | 35 | 30 | ||
| JDB253535 | SOB 25-35-35 | 25 | 35 | 35 | ||
| JDB253540 | SOB 25-35-40 | 25 | 35 | 40 | ||
| JDB253550 | SOB 25-35-50 | 25 | 35 | 50 | ||
| JDB283820 | SOB 28-38-20 | 28 | 38 | 20 | ||
| JDB283825 | SOB 28-38-25 | 28 | 38 | 25 | ||
| JDB283830 | SOB 28-38-30 | 28 | 38 | 30 | ||
| JDB283840 | SOB 28-38-40 | 28 | 38 | 40 | ||
| JDB303812 | SOB 30-38-12 | 30 | 38 | 12 | ||
| JDB303815 | SOB 30-38-15 | 30 | 38 | 15 | ||
| JDB303820 | SOB 30-38-20 | 30 | 38 | 20 | ||
| JDB303825 | SOB 30-38-25 | 30 | 38 | 25 | ||
| Semak Silinder Metrik | ||||||
| Perawatan bebas bantalan dan pohon panduan, perunggu dengan pelumas padat | ||||||
| Item No. | Kode yang setara | Ø Dalam d |
Ø Luar D |
Panjang L |
||
| JDB303830 | SOB 30-38-30 | 30 | 38 | 30 | ||
| JDB303835 | SOB 30-38-35 | 30 | 38 | 35 | ||
| JDB303840 | SOB 30-38-40 | 30 | 38 | 40 | ||
| JDB303850 | SOB 30-38-50 | 30 | 38 | 50 | ||
| JDB303860 | SOB 30-38-60 | 30 | 38 | 60 | ||
| JDB304012 | SOB 30-40-12 | 30 | 40 | 12 | ||
| JDB304015 | SOB 30-40-15 | 30 | 40 | 15 | ||
| JDB304020 | SOB 30-40-20 | 30 | 40 | 20 | ||
| JDB304025 | SOB 30-40-25 | 30 | 40 | 25 | ||
| JDB304030 | SOB 30-40-30 | 30 | 40 | 30 | ||
| JDB304035 | SOB 30-40-35 | 30 | 40 | 35 | ||
| JDB304040 | SOB 30-40-40 | 30 | 40 | 40 | ||
| JDB304050 | SOB 30-40-50 | 30 | 40 | 50 | ||
| JDB304060 | SOB 30-40-60 | 30 | 40 | 60 | ||
| JDB3,154030 | SOB 31,5-40-30 | 3,15 | 40 | 30 | ||
| JDB3,154040 | SOB 31,5-40-40 | 3,15 | 40 | 40 | ||
| JDB324215 | SOB 32-42-15 | 32 | 42 | 15 | ||
| JDB324220 | SOB 32-42-20 | 32 | 42 | 20 | ||
| JDB324230 | SOB 32-42-30 | 32 | 42 | 30 | ||
| JDB324240 | SOB 32-42-40 | 32 | 42 | 40 | ||
| JDB354420 | SOB 35-44-20 | 35 | 44 | 20 | ||
| JDB354425 | SOB 35-44-25 | 35 | 44 | 25 | ||
| JDB354430 | SOB 35-44-30 | 35 | 44 | 30 | ||
| JDB354435 | SOB 35-44-35 | 35 | 44 | 35 | ||
| JDB354440 | SOB 35-44-40 | 35 | 44 | 40 | ||
| JDB354450 | SOB 35-44-50 | 35 | 44 | 50 | ||
| JDB354460 | SOB 35-44-60 | 35 | 44 | 60 | ||
| JDB354515 | SOB 35-45-15 | 35 | 45 | 15 | ||
| JDB354520 | SOB 35-45-20 | 35 | 45 | 20 | ||
| JDB354525 | SOB 35-45-25 | 35 | 45 | 25 | ||
| JDB354530 | SOB 35-45-30 | 35 | 45 | 30 | ||
| JDB354535 | SOB 35-45-35 | 35 | 45 | 35 | ||
| JDB354540 | SOB 35-45-40 | 35 | 45 | 40 | ||
| JDB354550 | SOB 35-45-50 | 35 | 45 | 50 | ||
| JDB354560 | SOB 35-45-60 | 35 | 45 | 60 | ||
| JDB384830 | SOB 38-48-30 | 38 | 48 | 30 | ||
| JDB384840 | SOB 38-48-40 | 38 | 48 | 40 | ||
| JDB405015 | SOB 40-50-15 | 40 | 50 | 15 | ||
| JDB405020 | SOB 40-50-20 | 40 | 50 | 20 | ||
| JDB405025 | SOB 40-50-25 | 40 | 50 | 25 | ||
| JDB405030 | SOB 40-50-30 | 40 | 50 | 30 | ||
| JDB405035 | SOB 40-50-35 | 40 | 50 | 35 | ||
| JDB405040 | SOB 40-50-40 | 40 | 50 | 40 | ||
| JDB405050 | SOB 40-50-50 | 40 | 50 | 50 | ||
| JDB405060 | SOB 40-50-60 | 40 | 50 | 60 | ||
| JDB405070 | SOB 40-50-70 | 40 | 50 | 70 | ||
| Semak Silinder Metrik | ||||||
| Perawatan bebas bantalan dan pohon panduan, perunggu dengan pelumas padat | ||||||
| Item No. | Kode yang setara | Ø Dalam d |
Ø Luar D |
Panjang L |
||
| JDB405080 | SOB 40-50-80 | 40 | 50 | 80 | ||
| JDB405515 | SOB 40-55-15 | 40 | 55 | 15 | ||
| JDB405525 | SOB 40-55-25 | 40 | 55 | 25 | ||
| JDB405530 | SOB 40-55-30 | 40 | 55 | 30 | ||
| JDB405535 | SOB 40-55-35 | 40 | 55 | 35 | ||
| JDB405540 | SOB 40-55-40 | 40 | 55 | 40 | ||
| JDB405550 | SOB 40-55-50 | 40 | 55 | 50 | ||
| JDB405560 | SOB 40-55-60 | 40 | 55 | 60 | ||
| JDB455530 | SOB 45-55-30 | 45 | 55 | 30 | ||
| JDB455535 | SOB 45-55-35 | 45 | 55 | 35 | ||
| JDB455540 | SOB 45-55-40 | 45 | 55 | 40 | ||
| JDB455550 | SOB 45-55-50 | 45 | 55 | 50 | ||
| JDB455560 | SOB 45-55-60 | 45 | 55 | 60 | ||
| JDB455630 | SOB 45-56-30 | 45 | 56 | 30 | ||
| JDB455635 | SOB 45-56-35 | 45 | 56 | 35 | ||
| JDB455640 | SOB 45-56-40 | 45 | 56 | 40 | ||
| JDB455650 | SOB 45-56-50 | 45 | 56 | 50 | ||
| JDB455660 | SOB 45-56-60 | 45 | 56 | 60 | ||
| JDB456030 | SOB 45-60-30 | 45 | 60 | 30 | ||
| JDB456035 | SOB 45-60-35 | 45 | 60 | 35 | ||
| JDB456040 | SOB 45-60-40 | 45 | 60 | 40 | ||
| JDB456050 | SOB 45-60-50 | 45 | 60 | 50 | ||
| JDB456060 | SOB 45-60-60 | 45 | 60 | 60 | ||
| JDB456070 | SOB 45-60-70 | 45 | 60 | 70 | ||
| JDB456080 | SOB 45-60-80 | 45 | 60 | 80 | ||
| JDB506020 | SOB 50-60-20 | 50 | 60 | 20 | ||
| JDB506025 | SOB 50-60-25 | 50 | 60 | 25 | ||
| JDB506030 | SOB 50-60-30 | 50 | 60 | 30 | ||
| JDB506035 | SOB 50-60-35 | 50 | 60 | 35 | ||
| JDB506040 | SOB 50-60-40 | 50 | 60 | 40 | ||
| JDB506050 | SOB 50-60-50 | 50 | 60 | 50 | ||
| JDB506060 | SOB 50-60-60 | 50 | 60 | 60 | ||
| JDB506070 | SOB 50-60-70 | 50 | 60 | 70 | ||
| JDB506080 | SOB 50-60-80 | 50 | 60 | 80 | ||
| JDB506230 | SOB 50-62-30 | 50 | 62 | 30 | ||
| JDB506235 | SOB 50-62-35 | 50 | 62 | 35 | ||
| JDB506240 | SOB 50-62-40 | 50 | 62 | 40 | ||
| JDB506250 | SOB 50-62-50 | 50 | 62 | 50 | ||
| JDB506260 | SOB 50-62-60 | 50 | 62 | 60 | ||
| JDB506270 | SOB 50-62-70 | 50 | 62 | 70 | ||
| JDB506280 | SOB 50-62-80 | 50 | 62 | 80 | ||
| JDB506530 | SOB 50-65-30 | 50 | 65 | 30 | ||
| JDB506540 | SOB 50-65-40 | 50 | 65 | 40 | ||
| JDB506550 | SOB 50-65-50 | 50 | 65 | 50 | ||
| JDB506560 | SOB 50-65-60 | 50 | 65 | 60 | ||
| JDB506570 | SOB 50-65-70 | 50 | 65 | 70 | ||
| Semak Silinder Metrik | ||||||
| Perawatan bebas bantalan dan pohon panduan, perunggu dengan pelumas padat | ||||||
| Item No. | Kode yang setara | Ø Dalam d |
Ø Luar D |
Panjang L |
||
| JDB506580 | SOB 50-65-80 | 50 | 65 | 80 | ||
| JDB5065100 | SOB 50-65-100 | 50 | 65 | 100 | ||
| JDB557030 | SOB 55-70-30 | 55 | 70 | 30 | ||
| JDB557035 | SOB 55-70-35 | 55 | 70 | 35 | ||
| JDB557040 | SOB 55-70-40 | 55 | 70 | 40 | ||
| JDB557050 | SOB 55-70-50 | 55 | 70 | 50 | ||
| JDB557060 | SOB 55-70-60 | 55 | 70 | 60 | ||
| JDB557070 | SOB 55-70-70 | 55 | 70 | 70 | ||
| JDB607430 | SOB 60-74-30 | 60 | 74 | 30 | ||
| JDB607435 | SOB 60-74-35 | 60 | 74 | 35 | ||
| JDB607440 | SOB 60-74-40 | 60 | 74 | 40 | ||
| JDB607450 | SOB 60-74-50 | 60 | 74 | 50 | ||
| JDB607460 | SOB 60-74-60 | 60 | 74 | 60 | ||
| JDB607470 | SOB 60-74-70 | 60 | 74 | 70 | ||
| JDB607480 | SOB 60-74-80 | 60 | 74 | 80 | ||
| JDB6074100 | SOB 60-74-100 | 60 | 74 | 100 | ||
| JDB607530 | SOB 60-75-30 | 60 | 75 | 30 | ||
| JDB607535 | SOB 60-75-35 | 60 | 75 | 35 | ||
| JDB607540 | SOB 60-75-40 | 60 | 75 | 40 | ||
| JDB607550 | SOB 60-75-50 | 60 | 75 | 50 | ||
| JDB607560 | SOB 60-75-60 | 60 | 75 | 60 | ||
| JDB607570 | SOB 60-75-70 | 60 | 75 | 70 | ||
| JDB607580 | SOB 60-75-80 | 60 | 75 | 80 | ||
| JDB6075100 | SOB 60-75-100 | 60 | 75 | 100 | ||
| JDB637560 | SOB 63-75-60 | 63 | 75 | 60 | ||
| JDB637570 | SOB 63-75-70 | 63 | 75 | 70 | ||
| JDB637580 | SOB 63-75-80 | 63 | 75 | 80 | ||
| JDB658040 | SOB 65-80-40 | 65 | 80 | 40 | ||
| JDB658050 | SOB 65-80-50 | 65 | 80 | 50 | ||
| JDB658060 | SOB 65-80-60 | 65 | 80 | 60 | ||
| JDB658070 | SOB 65-80-70 | 65 | 80 | 70 | ||
| JDB658080 | SOB 65-80-80 | 65 | 80 | 80 | ||
| JDB708530 | SOB 70-85-30 | 70 | 85 | 30 | ||
| JDB708535 | SOB 70-85-35 | 70 | 85 | 35 | ||
| JDB708540 | SOB 70-85-40 | 70 | 85 | 40 | ||
| JDB708550 | SOB 70-85-50 | 70 | 85 | 50 | ||
| JDB708560 | SOB 70-85-60 | 70 | 85 | 60 | ||
| JDB708570 | SOB 70-85-70 | 70 | 85 | 70 | ||
| JDB708580 | SOB 70-85-80 | 70 | 85 | 80 | ||
| JDB7085100 | SOB 70-85-100 | 70 | 85 | 100 | ||
| JDB709050 | SOB 70-90-50 | 70 | 90 | 50 | ||
| JDB709060 | SOB 70-90-60 | 70 | 90 | 60 | ||
| JDB709070 | SOB 70-90-70 | 70 | 90 | 70 | ||
| JDB709080 | SOB 70-90-80 | 70 | 90 | 80 | ||
| JDB7090100 | SOB 70-90-100 | 70 | 90 | 100 | ||
| JDB759050 | SOB 75-90-50 | 75 | 90 | 50 | ||
| Semak Silinder Metrik | ||||||
| Perawatan bebas bantalan dan pohon panduan, perunggu dengan pelumas padat | ||||||
| Item No. | Kode yang setara | Ø Dalam d |
Ø Luar D |
Panjang L |
||
| JDB759060 | SOB 75-90-60 | 75 | 90 | 60 | ||
| JDB759070 | SOB 75-90-70 | 75 | 90 | 70 | ||
| JDB759080 | SOB 75-90-80 | 75 | 90 | 80 | ||
| JDB7590100 | SOB 75-90-100 | 75 | 90 | 100 | ||
| JDB759560 | SOB 75-95-60 | 75 | 95 | 60 | ||
| JDB759570 | SOB 75-95-70 | 75 | 95 | 70 | ||
| JDB759580 | SOB 75-95-80 | 75 | 95 | 80 | ||
| JDB7595100 | SOB 75-95-100 | 75 | 95 | 100 | ||
| JDB809620 | SOB 80-96-20 | 80 | 96 | 20 | ||
| JDB809640 | SOB 80-96-40 | 80 | 96 | 40 | ||
| JDB809650 | SOB 80-96-50 | 80 | 96 | 50 | ||
| JDB809660 | SOB 80-96-60 | 80 | 96 | 60 | ||
| JDB809670 | SOB 80-96-70 | 80 | 96 | 70 | ||
| JDB809680 | SOB 80-96-80 | 80 | 96 | 80 | ||
| JDB8096100 | SOB 80-96-100 | 80 | 96 | 100 | ||
| JDB8096120 | SOB 80-96-120 | 80 | 96 | 120 | ||
| JDB8010040 | SOB 80-100-40 | 80 | 100 | 40 | ||
| JDB8010050 | SOB 80-100-50 | 80 | 100 | 50 | ||
| JDB8010060 | SOB 80-100-60 | 80 | 100 | 60 | ||
| JDB8010070 | SOB 80-100-70 | 80 | 100 | 70 | ||
| JDB8010080 | SOB 80-100-80 | 80 | 100 | 80 | ||
| JDB80100100 | SOB 80-100-100 | 80 | 100 | 100 | ||
| JDB80100120 | SOB 80-100-120 | 80 | 100 | 120 | ||
| JDB80100140 | SOB 80-100-140 | 80 | 100 | 140 | ||
| JDB8510025 | SOB 85-100-25 | 85 | 100 | 25 | ||
| JDB8510060 | SOB 85-100-60 | 85 | 100 | 60 | ||
| JDB8510080 | SOB 85-100-80 | 85 | 100 | 80 | ||
| JDB9011030 | SOB 90-110-30 | 90 | 110 | 30 | ||
| JDB9011050 | SOB 90-110-50 | 90 | 110 | 50 | ||
| JDB9011060 | SOB 90-110-60 | 90 | 110 | 60 | ||
| JDB9011070 | SOB 90-110-70 | 90 | 110 | 70 | ||
| JDB9011080 | SOB 90-110-80 | 90 | 110 | 80 | ||
| JDB9011090 | SOB 90-110-90 | 90 | 110 | 90 | ||
| JDB90110100 | SOB 90-110-100 | 90 | 110 | 100 | ||
| JDB90110120 | SOB 90-110-120 | 90 | 110 | 120 | ||
| JDB100115100 | SOB 100-115-100 | 100 | 115 | 100 | ||
| JDB10012040 | SOB 100-120-40 | 100 | 120 | 40 | ||
| JDB10012050 | SOB 100-120-50 | 100 | 120 | 50 | ||
| JDB10012060 | SOB 100-120-60 | 100 | 120 | 60 | ||
| JDB10012070 | SOB 100-120-70 | 100 | 120 | 70 | ||
| JDB10012080 | SOB 100-120-80 | 100 | 120 | 80 | ||
| JDB10012090 | SOB 100-120-90 | 100 | 120 | 90 | ||
| JDB100120100 | SOB 100-120-100 | 100 | 120 | 100 | ||
| JDB100120120 | SOB 100-120-120 | 100 | 120 | 120 | ||
| JDB100120140 | SOB 100-120-140 | 100 | 120 | 140 | ||
| JDB11013050 | SOB 110-130-50 | 110 | 130 | 50 | ||
| Semak Silinder Metrik | ||||||
| Perawatan bebas bantalan dan pohon panduan, perunggu dengan pelumas padat | ||||||
| Item No. | Kode yang setara | Ø Dalam d |
Ø Luar D |
Panjang L |
||
| JDB11013070 | SOB 110-130-70 | 110 | 130 | 70 | ||
| JDB11013080 | SOB 110-130-80 | 110 | 130 | 80 | ||
| JDB110130100 | SOB 110-130-100 | 110 | 130 | 100 | ||
| JDB110130120 | SOB 110-130-120 | 110 | 130 | 120 | ||
| JDB12014070 | SOB 120-140-70 | 120 | 140 | 70 | ||
| JDB12014080 | SOB 120-140-80 | 120 | 140 | 80 | ||
| JDB12014090 | SOB 120-140-90 | 120 | 140 | 90 | ||
| JDB120140100 | SOB 120-140-100 | 120 | 140 | 100 | ||
| JDB120140120 | SOB 120-140-120 | 120 | 140 | 120 | ||
| JDB120140140 | SOB 120-140-140 | 120 | 140 | 140 | ||
| JDB125145100 | SOB 125-145-100 | 125 | 145 | 100 | ||
| JDB125145120 | SOB 125-145-120 | 125 | 145 | 120 | ||
| JDB13015080 | SOB 130-150-80 | 130 | 150 | 80 | ||
| JDB130150100 | SOB 130-150-100 | 130 | 150 | 100 | ||
| JDB130150130 | SOB 130-150-130 | 130 | 150 | 130 | ||
| JDB140160100 | SOB 140-160-100 | 140 | 160 | 100 | ||
| JDB140160140 | SOB 140-160-140 | 140 | 160 | 140 | ||
| JDB150170100 | SOB 150-170-100 | 150 | 170 | 100 | ||
| JDB150170150 | SOB 150-170-150 | 150 | 170 | 150 | ||
| JDB16018080 | SOB 160-180-80 | 160 | 180 | 80 | ||
| JDB160180100 | SOB 160-180-100 | 160 | 180 | 100 | ||
| JDB160180150 | SOB 160-180-150 | 160 | 180 | 150 | ||
| JDB170190100 | SOB 170-190-100 | 170 | 190 | 100 | ||
| JDB170190150 | SOB 170-190-150 | 170 | 190 | 150 | ||
| JDB180200100 | SOB 180-200-100 | 180 | 200 | 100 | ||
| JDB180200150 | SOB 180-200-150 | 180 | 200 | 150 | ||
| JDB190210100 | SOB 190-210-100 | 190 | 210 | 100 | ||
| JDB190210150 | SOB 190-210-150 | 190 | 210 | 150 | ||
| JDB200230150 | SOB 200-230-150 | 200 | 230 | 150 | ||
| JDB200230200 | SOB 200-230-200 | 200 | 230 | 200 | ||
Solid Bronze Bearings dirancang untuk memberikan kinerja yang unggul dalam aplikasi yang membutuhkan kapasitas beban tinggi dan sifat kelelahan yang baik.Mereka terbuat dari paduan perunggu dengan colokan pelumas padat, yang memberikan pelumasan terus menerus selama operasi.
Tim dukungan teknis kami tersedia untuk membantu dengan pertanyaan terkait pemasangan, pemeliharaan, dan kinerja Solid Bronze Bearings.termasuk analisis bantalan, analisis kegagalan, dan desain bantalan khusus.
Tujuan kami adalah untuk menyediakan pelanggan kami dengan tingkat tertinggi dukungan dan layanan, memastikan bahwa Solid Bronze Bearings mereka melakukan optimum sepanjang umur mereka.
A: Nama merek bantalan perunggu padat adalah VIIPLUS.COM.
T: Apa nomor model bantalan perunggu padat?
A: Nomor model bantalan perunggu padat adalah China Solid Bronze Bearing.
T: Di mana bantalan perunggu padat dibuat?
A: Bantalan perunggu padat dibuat di Cina.
T: Apa sifat material dari bantalan perunggu padat?
A: Bantalan perunggu padat terbuat dari bahan perunggu berkualitas tinggi dengan ketahanan aus yang sangat baik dan kapasitas beban yang tinggi.
T: Apa aplikasi yang direkomendasikan untuk bantalan perunggu padat?
A: Bantalan perunggu padat direkomendasikan untuk digunakan dalam aplikasi industri berat seperti pertambangan, konstruksi, dan pertanian.
