| Nama merek: | VIIPLUS |
| Nomor Model: | Oilless Bush |
| MOQ: | Dapat dinegosiasikan |
| harga: | dapat dinegosiasikan |
| Ketentuan Pembayaran: | T / T |
| Kemampuan Penyediaan: | steker bantalan grafit, Cina, produsen, pemasok, pabrik, grosir, Bantalan Jurnal Logam, Bantalan Pel |

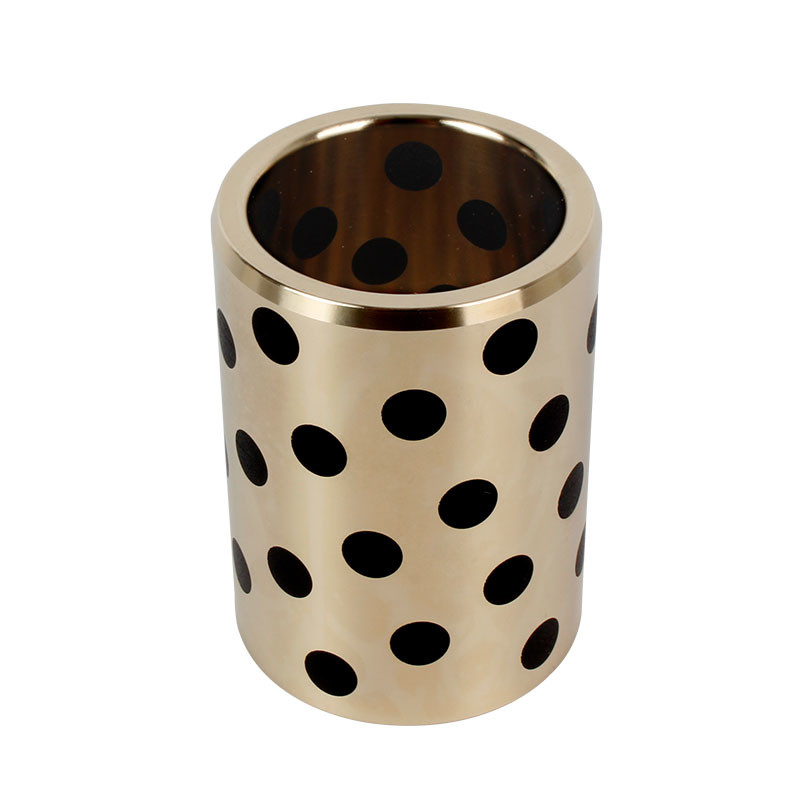

Pohon-pohon mangan tanpa minyak yang tahan tarik tinggi kami, yang dilengkapi dengan perunggu pelumas padat, dirancang untuk menawarkan kinerja dan daya tahan yang luar biasa dalam berbagai aplikasi industri.Bahan mangan memastikan kekuatan superior dan ketahanan haus, sementara perunggu pelumas padat memberikan operasi yang lancar dan dapat diandalkan tanpa perlu pelumasan konstan.
Bushes ini sangat ideal untuk digunakan di lingkungan beban tinggi dan kecepatan tinggi, di mana bushing tradisional yang dilumasi minyak mungkin tidak cocok.Perunggu pelumas padat memastikan pelumasan yang konsisten dan dapat diandalkan, bahkan dalam kondisi ekstrim, mengurangi biaya pemeliharaan dan memperpanjang umur semak.
Kami memproduksi semak-semak ini dengan presisi dan perhatian pada detail, memastikan pas yang sempurna dan kinerja yang tahan lama.kami bisa memberikan solusi yang sempurna.
Hubungi kami hari ini untuk mempelajari lebih lanjut tentang semak tanpa minyak mangan bertekanan tinggi kami dengan perunggu pelumasan padat atau untuk memesan.Tim ahli kami selalu siap untuk membantu Anda dengan kebutuhan bushing Anda.
SOB Perawatan bebas bantalan diproduksi menggunakanPerunggu mangan bertekanan tinggi yang disegel dengan pelumas padat. Bahan dasar paduan perunggu adalah CuZn25Al6Fe3Mn3 dengan grafit disegel
1Tidak sensitif terhadap lingkungan yang kotor
2Tahan terhadap beban kejut dan getaran pada kecepatan rendah
3Memungkinkan operasi dengan permukaan poros yang buruk
4.Resistensi yang baik terhadap kondisi korosif
| Bahan perunggu |
CuZn25Al6Fe3Mn3 +grafit |
CuSn5Pb5Zn5 +grafit |
CuAl10Fe5Ni5 +grafit |
CuSn12 +grafit |
|
| Cu% | Beristirahat | 85 | 80 | 88 | |
| Sn% | ... | 5 | ... | 12 | |
| Pb% | ... | 5 | ... | ... | |
| Zn% | 25 | 5 | ... | ... | |
| Al% | 6 | ... | 10 | ... | |
| Ni% | ... | ... | 5 | ... | |
| Fe% | 3 | ... | 5 | ... | |
| Mn% | 3 | ... | ... | ... | |
| Kepadatan | 8.2 g/cm3 | 80,8 g/cm3 | 80,5 g/cm3 | 80,8 g/cm3 | |
| Kekerasan | >HB210 | >HB70 | >HB150 | >HB80 | |
| Max. Tekanan beban | 100 N/mm2 | 40 N/mm2 | 50 N/mm2 | 45 N/mm2 | |
| Kecepatan linier | 0.5 m/s (kering) | 0.4 m/s ((kering) | 0.25 m/s (kering) | 0.5 m/s (kering) | |
| Maks. PV | 1.65 N/mm2 * m/s | 1.00 N/mm2 * m/s | 1.25 N/mm2 * m/s | 1.20 N/mm2 * m/s | |
| Kekuatan tarik | > 750 N/mm2 | > 200 N/mm2 | > 500 N/mm2 | > 360 N/mm2 | |
| Perpanjangan | >12 % | >15 % | > 10% | > 8% | |
| Batas suhu | -40 ~ +300 oC | -40 ~ +250 oC | -40 ~ +400 oC | -40 ~ +300 oC |
1Mesin konstruksi
2Peralatan transportasi
3Mesin pembuatan pulp dan kertas
4Peralatan lepas pantai
| Varian: | ||||||
| Nomor artikel | Nama artikel | Diameter dalam d | Diameter luar D | Panjang L | f | r |
| 11008080 | SOB 8-12-8 | 8 | 12 | 8 | 0.5 | 0.5 |
| 11006120 | SOB 6-10-12 | 6 | 10 | 12 | 0.5 | 0.5 |
| 11008100 | SOB 8-12-10 | 8 | 12 | 10 | 0.5 | 0.5 |
| 11008120 | SOB 8-12-12 | 8 | 12 | 12 | 0.5 | 0.5 |
| 11008150 | SOB 8-12-15 | 8 | 12 | 15 | 0.5 | 0.5 |
| 11010088 | SOB 10-14-8 | 10 | 14 | 8 | 0.5 | 0.5 |
| 11010108 | SOB 10-14-10 | 10 | 14 | 10 | 0.5 | 0.5 |
| 11010128 | SOB 10-14-12 | 10 | 14 | 12 | 0.5 | 0.5 |
| 11010158 | SOB 10-14-15 | 10 | 14 | 15 | 0.5 | 0.5 |
| 11010208 | SOB 10-14-20 | 10 | 14 | 20 | 0.5 | 0.5 |
| 11010100 | SOB 10-15-10 | 10 | 15 | 10 | 0.5 | 0.5 |
| 11012080 | SOB12-18-8 | 12 | 18 | 8 | 0.5 | 0.5 |
| 11012100 | SOB12-18-10 | 12 | 18 | 10 | 0.5 | 0.5 |
| 11012120 | SOB12-18-12 | 12 | 18 | 12 | 0.5 | 0.5 |
| 11012150 | SOB12-18-15 | 12 | 18 | 15 | 0.5 | 0.5 |
| 11012160 | SOB12-18-16 | 12 | 18 | 16 | 0.5 | 0.5 |
| 11012190 | SOB12-18-19 | 12 | 18 | 19 | 0.5 | 0.5 |
| 11012200 | SOB12-18-20 | 12 | 18 | 20 | 0.5 | 0.5 |
| 11012250 | SOB12-18-25 | 12 | 18 | 25 | 0.5 | 0.5 |
| 11012300 | SOB12-18-30 | 12 | 18 | 30 | 0.5 | 0.5 |
| 11013100 | SOB13-19-10 | 13 | 19 | 10 | 0.5 | 0.5 |
| 11013120 | SOB13-19-12 | 13 | 19 | 12 | 0.5 | 0.5 |
| 11013150 | SOB13-19-15 | 13 | 19 | 15 | 0.5 | 0.5 |
| 11013160 | SOB13-19-16 | 13 | 19 | 16 | 0.5 | 0.5 |
| 11013200 | SOB13-19-20 | 13 | 19 | 20 | 0.5 | 0.5 |
| 11013250 | SOB13-19-25 | 13 | 19 | 25 | 0.5 | 0.5 |
| 11014100 | SOB14-20-10 | 14 | 20 | 10 | 0.5 | 0.5 |
| 11014120 | SOB14-20-12 | 14 | 20 | 12 | 0.5 | 0.5 |
| 11014150 | SOB14-20-15 | 14 | 20 | 15 | 0.5 | 0.5 |
| 11014200 | SOB14-20-20 | 14 | 20 | 20 | 0.5 | 0.5 |
| 11014250 | SOB14-20-25 | 14 | 20 | 25 | 0.5 | 0.5 |
| 11014300 | SOB14-20-30 | 14 | 20 | 30 | 0.5 | 0.5 |
| 11015100 | SOB15-21-10 | 15 | 21 | 10 | 0.5 | 0.5 |
| 11015120 | SOB15-21-12 | 15 | 21 | 12 | 0.5 | 0.5 |
| 11015150 | SOB15-21-15 | 15 | 21 | 15 | 0.5 | 0.5 |
| 11015160 | SOB15-21-16 | 15 | 21 | 16 | 0.5 | 0.5 |
| 11015200 | SOB15-21-20 | 15 | 21 | 20 | 0.5 | 0.5 |
| 11015250 | SOB15-21-25 | 15 | 21 | 25 | 0.5 | 0.5 |
| 11015300 | SOB15-21-30 | 15 | 21 | 30 | 0.5 | 0.5 |
| 11016100 | SOB16-22-10 | 16 | 22 | 10 | 0.5 | 0.5 |
| 11016120 | SOB16-22-12 | 16 | 22 | 12 | 0.5 | 0.5 |
| 11016150 | SOB16-22-15 | 16 | 22 | 15 | 0.5 | 0.5 |
| 11016160 | SOB16-22-16 | 16 | 22 | 16 | 0.5 | 0.5 |
| 11016190 | SOB16-22-19 | 16 | 22 | 19 | 0.5 | 0.5 |
| 11016200 | SOB16-22-20 | 16 | 22 | 20 | 0.5 | 0.5 |
| 11016250 | SOB16-22-25 | 16 | 22 | 25 | 0.5 | 0.5 |
| 11016300 | SOB16-22-30 | 16 | 22 | 30 | 0.5 | 0.5 |
| 11016350 | SOB16-22-35 | 16 | 22 | 35 | 0.5 | 0.5 |
| 11016400 | SOB16-22-40 | 16 | 22 | 40 | 0.5 | 0.5 |
| 11017150 | SOB17-23-15 | 17 | 23 | 15 | 0.5 | 0.5 |
| 11018100 | SOB18-24-10 | 18 | 24 | 10 | 0.5 | 0.5 |
| 11018120 | SOB18-24-12 | 18 | 24 | 12 | 0.5 | 0.5 |
| 11018150 | SOB18-24-15 | 18 | 24 | 15 | 0.5 | 0.5 |
| 11018160 | SOB18-24-16 | 18 | 24 | 16 | 0.5 | 0.5 |
| 11018200 | SOB18-24-20 | 18 | 24 | 20 | 0.5 | 0.5 |
| 11018250 | SOB18-24-25 | 18 | 24 | 25 | 0.5 | 0.5 |
| 11018300 | SOB18-24-30 | 18 | 24 | 30 | 0.5 | 0.5 |
| 11018350 | SOB18-24-35 | 18 | 24 | 35 | 0.5 | 0.5 |
| 11018400 | SOB18-24-40 | 18 | 24 | 40 | 0.5 | 0.5 |
| 11019150 | SOB19-26-15 | 19 | 26 | 15 | 0.5 | 0.5 |
| 11019200 | SOB19-26-20 | 19 | 26 | 20 | 0.5 | 0.5 |
| 11020100 | SOB20-28-10 | 20 | 28 | 10 | 0.5 | 0.5 |
| 11020120 | SOB20-28-12 | 20 | 28 | 12 | 0.5 | 0.5 |
| 11020150 | SOB20-28-15 | 20 | 28 | 15 | 0.5 | 0.5 |
| 11020160 | SOB20-28-16 | 20 | 28 | 16 | 0.5 | 0.5 |
| 11020190 | SOB20-28-19 | 20 | 28 | 19 | 0.5 | 0.5 |
| 11020200 | SOB20-28-20 | 20 | 28 | 20 | 0.5 | 0.5 |
| 11020250 | SOB20-28-25 | 20 | 28 | 25 | 0.5 | 0.5 |
| 11020300 | SOB20-28-30 | 20 | 28 | 30 | 0.5 | 0.5 |
| 11020350 | SOB20-28-35 | 20 | 28 | 35 | 0.5 | 0.5 |
| 11020400 | SOB20-28-40 | 20 | 28 | 40 | 0.5 | 0.5 |
| 11020500 | SOB20-28-50 | 20 | 28 | 50 | 0.5 | 0.5 |
| 11020108 | SOB20-30-10 | 20 | 30 | 10 | 0.5 | 0.5 |
| 11020128 | SOB20-30-12 | 20 | 30 | 12 | 0.5 | 0.5 |
| 11020158 | SOB20-30-15 | 20 | 30 | 15 | 0.5 | 0.5 |
| 11020168 | SOB20-30-16 | 20 | 30 | 16 | 0.5 | 0.5 |
| 11020208 | SOB20-30-20 | 20 | 30 | 20 | 0.5 | 0.5 |
| 11020258 | SOB20-30-25 | 20 | 30 | 25 | 0.5 | 0.5 |
| 11020308 | SOB20-30-30 | 20 | 30 | 30 | 0.5 | 0.5 |
| 11020358 | SOB20-30-35 | 20 | 30 | 35 | 0.5 | 0.5 |
| 11020408 | SOB20-30-40 | 20 | 30 | 40 | 0.5 | 0.5 |
| 11020708 | SOB20-30-70 | 20 | 30 | 70 | 0.5 | 0.5 |
| 11022120 | SOB22-32-12 | 22 | 32 | 12 | 0.5 | 0.5 |
| 11022150 | SOB22-32-15 | 22 | 32 | 15 | 0.5 | 0.5 |
| 11022200 | SOB22-32-20 | 22 | 32 | 20 | 0.5 | 0.5 |
| 11022250 | SOB22-32-25 | 22 | 32 | 25 | 0.5 | 0.5 |
| 11025120 | SOB25-33-12 | 25 | 33 | 12 | 0.5 | 0.5 |
| 11025150 | SOB25-33-15 | 25 | 33 | 15 | 0.5 | 0.5 |
| 11025160 | SOB25-33-16 | 25 | 33 | 16 | 0.5 | 0.5 |
| 11025200 | SOB25-33-20 | 25 | 33 | 20 | 0.5 | 0.5 |
| 11025250 | SOB25-33-25 | 25 | 33 | 25 | 0.5 | 0.5 |
| 11025300 | SOB25-33-30 | 25 | 33 | 30 | 0.5 | 0.5 |
| 11025350 | SOB25-33-35 | 25 | 33 | 35 | 0.5 | 0.5 |
| 11025400 | SOB25-33-40 | 25 | 33 | 40 | 0.5 | 0.5 |
| 11025500 | SOB25-33-50 | 25 | 33 | 50 | 0.5 | 0.5 |
| 11025600 | SOB25-33-60 | 25 | 33 | 60 | 0.5 | 0.5 |
| 11025128 | SOB25-35-12 | 25 | 35 | 12 | 0.5 | 0.5 |
| 11025158 | SOB25-35-15 | 25 | 35 | 15 | 0.5 | 0.5 |
| 11025168 | SOB25-35-16 | 25 | 35 | 16 | 0.5 | 0.5 |
| 11025208 | SOB25-35-20 | 25 | 35 | 20 | 0.5 | 0.5 |
| 11025258 | SOB25-35-25 | 25 | 35 | 25 | 0.5 | 0.5 |
| 11025308 | SOB25-35-30 | 25 | 35 | 30 | 0.5 | 0.5 |
| 11025358 | SOB25-35-35 | 25 | 35 | 35 | 0.5 | 0.5 |
| 11025408 | SOB25-35-40 | 25 | 35 | 40 | 0.5 | 0.5 |
| 11025508 | SOB25-35-50 | 25 | 35 | 50 | 0.5 | 0.5 |
| 11028200 | SOB28-38-20 | 28 | 38 | 20 | 0.5 | 0.5 |
| 11028250 | SOB28-38-25 | 28 | 38 | 25 | 0.5 | 0.5 |
| 11028300 | SOB28-38-30 | 28 | 38 | 30 | 0.5 | 0.5 |
| 11028400 | SOB28-38-40 | 28 | 38 | 40 | 0.5 | 0.5 |
| 11030120 | SOB30-38-12 | 30 | 38 | 12 | 1.0 | 1 |
| 11030150 | SOB30-38-15 | 30 | 38 | 15 | 1.0 | 1 |
| 11030200 | SOB30-38-20 | 30 | 38 | 20 | 1.0 | 1 |
| 11030250 | SOB30-38-25 | 30 | 38 | 25 | 1.0 | 1 |
| 11030300 | SOB30-38-30 | 30 | 38 | 30 | 1.0 | 1 |
| 11030350 | SOB30-38-35 | 30 | 38 | 35 | 1.0 | 1 |
| 11030400 | SOB30-38-40 | 30 | 38 | 40 | 1.0 | 1 |
| 11030500 | SOB30-38-50 | 30 | 38 | 50 | 1.0 | 1 |
| 11030600 | SOB30-38-60 | 30 | 38 | 60 | 1.0 | 1 |
| 11030128 | SOB30-40-12 | 30 | 40 | 12 | 1.0 | 1 |
| 11030158 | SOB30-40-15 | 30 | 40 | 15 | 1.0 | 1 |
| 11030208 | SOB30-40-20 | 30 | 40 | 20 | 1.0 | 1 |
| 11030258 | SOB30-40-25 | 30 | 40 | 25 | 1.0 | 1 |
| 11030308 | SOB30-40-30 | 30 | 40 | 30 | 1.0 | 1 |
| 11030358 | SOB30-40-35 | 30 | 40 | 35 | 1.0 | 1 |
| 11030408 | SOB30-40-40 | 30 | 40 | 40 | 1.0 | 1 |
| 11030508 | SOB30-40-50 | 30 | 40 | 50 | 1.0 | 1 |
| 11030608 | SOB30-40-60 | 30 | 40 | 60 | 1.0 | 1 |
| 11031300 | SOB31,5-40-30 | 31,5 | 40 | 30 | 1.0 | 1 |
| 11031400 | SOB31,5-40-40 | 31,5 | 40 | 40 | 1.0 | 1 |
| 11032150 | SOB32-42-15 | 32 | 42 | 15 | 1.0 | 1 |
| 11032200 | SOB32-42-20 | 32 | 42 | 20 | 1.0 | 1 |
| 11032300 | SOB32-42-30 | 32 | 42 | 30 | 1.0 | 1 |
| 11032400 | SOB32-42-40 | 32 | 42 | 40 | 1.0 | 1 |
| 11035200 | SOB35-44-20 | 35 | 44 | 20 | 1.0 | 1 |
| 11035250 | SOB35-44-25 | 35 | 44 | 25 | 1.0 | 1 |
| 11035300 | SOB35-44-30 | 35 | 44 | 30 | 1.0 | 1 |
| 11035350 | SOB35-44-35 | 35 | 44 | 35 | 1.0 | 1 |
| 11035400 | SOB35-44-40 | 35 | 44 | 40 | 1.0 | 1 |
| 11035500 | SOB35-44-50 | 35 | 44 | 50 | 1.0 | 1 |
| 11035600 | SOB35-44-60 | 35 | 44 | 60 | 1.0 | 1 |
| 11035158 | SOB35-45-15 | 35 | 45 | 15 | 1.0 | 1 |
| 11035208 | SOB35-45-20 | 35 | 45 | 20 | 1.0 | 1 |
| 11035258 | SOB35-45-25 | 35 | 45 | 25 | 1.0 | 1 |
| 11035308 | SOB35-45-30 | 35 | 45 | 30 | 1.0 | 1 |
| 11035358 | SOB35-45-35 | 35 | 45 | 35 | 1.0 | 1 |
| 11035408 | SOB35-45-40 | 35 | 45 | 40 | 1.0 | 1 |
| 11035508 | SOB35-45-50 | 35 | 45 | 50 | 1.0 | 1 |
| 11035608 | SOB35-45-60 | 35 | 45 | 60 | 1.0 | 1 |
| 11038300 | SOB38-48-30 | 38 | 48 | 30 | 1.0 | 1 |
| 11038400 | SOB38-48-40 | 38 | 48 | 40 | 1.0 | 1 |
| 11040150 | SOB40-50-15 | 40 | 50 | 15 | 1.0 | 1 |
| 11040200 | SOB40-50-20 | 40 | 50 | 20 | 1.0 | 1 |
| 11040250 | SOB40-50-25 | 40 | 50 | 25 | 1.0 | 1 |
| 11040300 | SOB40-50-30 | 40 | 50 | 30 | 1.0 | 1 |
| 11040350 | SOB40-50-35 | 40 | 50 | 35 | 1.0 | 1 |
| 11040400 | SOB40-50-40 | 40 | 50 | 40 | 1.0 | 1 |
| 11040500 | SOB40-50-50 | 40 | 50 | 50 | 1.0 | 1 |
| 11040600 | SOB40-50-60 | 40 | 50 | 60 | 1.0 | 1 |
| 11040700 | SOB40-50-70 | 40 | 50 | 70 | 1.0 | 1 |
| 11040800 | SOB40-50-80 | 40 | 50 | 80 | 1.0 | 1 |
| 11040158 | SOB40-55-15 | 40 | 55 | 15 | 1.0 | 1 |
| 11040258 | SOB40-55-25 | 40 | 55 | 25 | 1.0 | 1 |
| 11040308 | SOB40-55-30 | 40 | 55 | 30 | 1.0 | 1 |
| 11040358 | SOB40-55-35 | 40 | 55 | 35 | 1.0 | 1 |
| 11040408 | SOB40-55-40 | 40 | 55 | 40 | 1.0 | 1 |
| 11040508 | SOB40-55-50 | 40 | 55 | 50 | 1.0 | 1 |
| 11040608 | SOB40-55-60 | 40 | 55 | 60 | 1.0 | 1 |
| 11045308 | SOB45-55-30 | 45 | 55 | 30 | 1.0 | 1 |
| 11045358 | SOB45-55-35 | 45 | 55 | 35 | 1.0 | 1 |
| 11045408 | SOB45-55-40 | 45 | 55 | 40 | 1.0 | 1 |
| 11045508 | SOB45-55-50 | 45 | 55 | 50 | 1.0 | 1 |
| 11045608 | SOB45-55-60 | 45 | 55 | 60 | 1.0 | 1 |
| 11045300 | SOB45-56-30 | 45 | 56 | 30 | 1.0 | 1 |
| 11045350 | SOB45-56-35 | 45 | 56 | 35 | 1.0 | 1 |
| 11045400 | SOB45-56-40 | 45 | 56 | 40 | 1.0 | 1 |
| 11045500 | SOB45-56-50 | 45 | 56 | 50 | 1.0 | 1 |
| 11045600 | SOB45-56-60 | 45 | 56 | 60 | 1.0 | 1 |
| 11045309 | SOB45-60-30 | 45 | 60 | 30 | 1.0 | 1 |
| 11045359 | SOB45-60-35 | 45 | 60 | 35 | 1.0 | 1 |
| 11045409 | SOB45-60-40 | 45 | 60 | 40 | 1.0 | 1 |
| 11045509 | SOB45-60-50 | 45 | 60 | 50 | 1.0 | 1 |
| 11045609 | SOB45-60-60 | 45 | 60 | 60 | 1.0 | 1 |
| 11045709 | SOB45-60-70 | 45 | 60 | 70 | 1.0 | 1 |
| 11045809 | SOB45-60-80 | 45 | 60 | 80 | 1.0 | 1 |
| 11050208 | SOB50-60-20 | 50 | 60 | 20 | 1.0 | 1 |
| 11050258 | SOB50-60-25 | 50 | 60 | 25 | 1.0 | 1 |
| 11050308 | SOB50-60-30 | 50 | 60 | 30 | 1.0 | 1 |
| 11050358 | SOB50-60-35 | 50 | 60 | 35 | 1.0 | 1 |
| 11050408 | SOB50-60-40 | 50 | 60 | 40 | 1.0 | 1 |
| 11050508 | SOB50-60-50 | 50 | 60 | 50 | 1.0 | 1 |
| 11050608 | SOB50-60-60 | 50 | 60 | 60 | 1.0 | 1 |
| 11050708 | SOB50-60-70 | 50 | 60 | 70 | 1.0 | 1 |
| 11050808 | SOB50-60-80 | 50 | 60 | 80 | 1.0 | 1 |
| 11050300 | SOB50-62-30 | 50 | 62 | 30 | 1.0 | 1 |
| 11050350 | SOB50-62-35 | 50 | 62 | 35 | 1.0 | 1 |
| 11050400 | SOB50-62-40 | 50 | 62 | 40 | 1.0 | 1 |
| 11050500 | SOB50-62-50 | 50 | 62 | 50 | 1.0 | 1 |
| 11050600 | SOB50-62-60 | 50 | 62 | 60 | 1.0 | 1 |
| 11050700 | SOB50-62-70 | 50 | 62 | 70 | 1.0 | 1 |
| 11050800 | SOB50-62-80 | 50 | 62 | 80 | 1.0 | 1 |
| 11050309 | SOB50-65-30 | 50 | 65 | 30 | 1.0 | 1 |
| 11050409 | SOB50-65-40 | 50 | 65 | 40 | 1.0 | 1 |
| 11050509 | SOB50-65-50 | 50 | 65 | 50 | 1.0 | 1 |
| 11050609 | SOB50-65-60 | 50 | 65 | 60 | 1.0 | 1 |
| 11050709 | SOB50-65-70 | 50 | 65 | 70 | 1.0 | 1 |
| 11050809 | SOB50-65-80 | 50 | 65 | 80 | 1.0 | 1 |
| 11051009 | SOB50-65-100 | 50 | 65 | 100 | 1.0 | 1 |
| 11055309 | SOB55-70-30 | 55 | 70 | 30 | 1.0 | 1 |
| 11055359 | SOB55-70-35 | 55 | 70 | 35 | 1.0 | 1 |
| 11055409 | SOB55-70-40 | 55 | 70 | 40 | 1.0 | 1 |
| 11055509 | SOB55-70-50 | 55 | 70 | 50 | 1.0 | 1 |
| 11055609 | SOB55-70-60 | 55 | 70 | 60 | 1.0 | 1 |
| 11055709 | SOB55-70-70 | 55 | 70 | 70 | 1.0 | 1 |
| 11060300 | SOB60-74-30 | 60 | 74 | 30 | 1.0 | 1 |
| 11060350 | SOB60-74-35 | 60 | 74 | 35 | 1.0 | 1 |
| 11060400 | SOB60-74-40 | 60 | 74 | 40 | 1.0 | 1 |
| 11060500 | SOB60-74-50 | 60 | 74 | 50 | 1.0 | 1 |
| 11060600 | SOB60-74-60 | 60 | 74 | 60 | 1.0 | 1 |
| 11060700 | SOB60-74-70 | 60 | 74 | 70 | 1.0 | 1 |
| 11060800 | SOB60-74-80 | 60 | 74 | 80 | 1.0 | 1 |
| 11061000 | SOB60-74-100 | 60 | 74 | 100 | 1.0 | 1 |
| 11060308 | SOB60-75-30 | 60 | 75 | 30 | 1.0 | 1 |
| 11060358 | SOB60-75-35 | 60 | 75 | 35 | 1.0 | 1 |
| 11060408 | SOB60-75-40 | 60 | 75 | 40 | 1.0 | 1 |
| 11060508 | SOB60-75-50 | 60 | 75 | 50 | 1.0 | 1 |
| 11060608 | SOB60-75-60 | 60 | 75 | 60 | 1.0 | 1 |
| 11060708 | SOB60-75-70 | 60 | 75 | 70 | 1.0 | 1 |
| 11060808 | SOB60-75-80 | 60 | 75 | 80 | 1.0 | 1 |
| 11061008 | SOB60-75-100 | 60 | 75 | 100 | 1.0 | 1 |
| 11063600 | SOB63-75-60 | 63 | 75 | 60 | 1.0 | 1 |
| 11063700 | SOB63-75-70 | 63 | 75 | 70 | 1.0 | 1 |
| 11063800 | SOB63-75-80 | 63 | 75 | 80 | 1.0 | 1 |
| 11065400 | SOB65-80-40 | 65 | 80 | 40 | 1.0 | 1 |
| 11065500 | SOB65-80-50 | 65 | 80 | 50 | 1.0 | 1 |
| 11065600 | SOB65-80-60 | 65 | 80 | 60 | 1.0 | 1 |
| 11065700 | SOB65-80-70 | 65 | 80 | 70 | 1.0 | 1 |
| 11065800 | SOB65-80-80 | 65 | 80 | 80 | 1.0 | 1 |
| 11070300 | SOB70-85-30 | 70 | 85 | 30 | 1.0 | 1 |
| 11070350 | SOB70-85-35 | 70 | 85 | 35 | 1.0 | 1 |
| 11070400 | SOB70-85-40 | 70 | 85 | 40 | 1.0 | 1 |
| 11070500 | SOB70-85-50 | 70 | 85 | 50 | 1.0 | 1 |
| 11070600 | SOB70-85-60 | 70 | 85 | 60 | 1.0 | 1 |
| 11070700 | SOB70-85-70 | 70 | 85 | 70 | 1.0 | 1 |
| 11070800 | SOB70-85-80 | 70 | 85 | 80 | 1.0 | 1 |
| 11071000 | SOB70-85-100 | 70 | 85 | 100 | 1.0 | 1 |
| 11070508 | SOB70-90-50 | 70 | 90 | 50 | 1.0 | 1 |
| 11070608 | SOB70-90-60 | 70 | 90 | 60 | 1.0 | 1 |
| 11070708 | SOB70-90-70 | 70 | 90 | 70 | 1.0 | 1 |
| 11070808 | SOB70-90-80 | 70 | 90 | 80 | 1.0 | 1 |
| 11071008 | SOB70-90-100 | 70 | 90 | 100 | 1.0 | 1 |
| 11075500 | SOB75-90-50 | 75 | 90 | 50 | 1.0 | 1 |
| 11075600 | SOB75-90-60 | 75 | 90 | 60 | 1.0 | 1 |
| 11075700 | SOB75-90-70 | 75 | 90 | 70 | 1.0 | 1 |
| 11075800 | SOB75-90-80 | 75 | 90 | 80 | 1.0 | 1 |
| 11075100 | SOB75-90-100 | 75 | 90 | 100 | 1.0 | 1 |
| 11075608 | SOB75-95-60 | 75 | 95 | 60 | 1.0 | 1 |
| 11075708 | SOB75-95-70 | 75 | 95 | 70 | 1.0 | 1 |
| 11075808 | SOB75-95-80 | 75 | 95 | 80 | 1.0 | 1 |
| 11075108 | SOB75-95-100 | 75 | 95 | 100 | 1.0 | 1 |
| 11080200 | SOB80-96-20 | 80 | 96 | 20 | 1.0 | 1 |
| 11080400 | SOB80-96-40 | 80 | 96 | 40 | 1.0 | 1 |
| 11080500 | SOB80-96-50 | 80 | 96 | 50 | 1.0 | 1 |
| 11080600 | SOB80-96-60 | 80 | 96 | 60 | 1.0 | 1 |
| 11080700 | SOB80-96-70 | 80 | 96 | 70 | 1.0 | 1 |
| 11080800 | SOB80-96-80 | 80 | 96 | 80 | 1.0 | 1 |
| 11081000 | SOB80-96-100 | 80 | 96 | 100 | 1.0 | 1 |
| 11081200 | SOB80-96-120 | 80 | 96 | 120 | 1.0 | 1 |
| 11080408 | SOB80-100-40 | 80 | 100 | 40 | 1.0 | 1 |
| 11080508 | SOB80-100-50 | 80 | 100 | 50 | 1.0 | 1 |
| 11080608 | SOB80-100-60 | 80 | 100 | 60 | 1.0 | 1 |
| 11080708 | SOB80-100-70 | 80 | 100 | 70 | 1.0 | 1 |
| 11080808 | SOB80-100-80 | 80 | 100 | 80 | 1.0 | 1 |
| 11081008 | SOB80-100-100 | 80 | 100 | 100 | 1.0 | 1 |
| 11081208 | SOB80-100-120 | 80 | 100 | 120 | 1.0 | 1 |
| 11081408 | SOB80-100-140 | 80 | 100 | 140 | 1.0 | 1 |
| 11085250 | SOB85-100-25 | 85 | 100 | 25 | 1.0 | 1 |
| 11085600 | SOB85-100-60 | 85 | 100 | 60 | 1.0 | 1 |
| 11085800 | SOB85-100-80 | 85 | 100 | 80 | 1.0 | 1 |
| 11090300 | SOB90-110-30 | 90 | 110 | 30 | 1.0 | 1 |
| 11090500 | SOB90-110-50 | 90 | 110 | 50 | 1.0 | 1 |
| 11090600 | SOB90-110-60 | 90 | 110 | 60 | 1.0 | 1 |
| 11090700 | SOB90-110-70 | 90 | 110 | 70 | 1.0 | 1 |
| 11090800 | SOB90-110-80 | 90 | 110 | 80 | 1.0 | 1 |
| 11090900 | SOB90-110-90 | 90 | 110 | 90 | 1.0 | 1 |
| 11091000 | SOB90-110-100 | 90 | 110 | 100 | 1.0 | 1 |
| 11091200 | SOB90-110-120 | 90 | 110 | 120 | 1.0 | 1 |
| 11101008 | SOB100-115-100 | 100 | 115 | 100 | 1,5 | 1,5 |
| 11100400 | SOB100-120-40 | 100 | 120 | 40 | 1,5 | 1,5 |
| 11100500 | SOB100-120-50 | 100 | 120 | 50 | 1,5 | 1,5 |
| 11100600 | SOB100-120-60 | 100 | 120 | 60 | 1,5 | 1,5 |
| 11100700 | SOB100-120-70 | 100 | 120 | 70 | 1,5 | 1,5 |
| 11100800 | SOB100-120-80 | 100 | 120 | 80 | 1,5 | 1,5 |
| 11100900 | SOB100-120-90 | 100 | 120 | 90 | 1,5 | 1,5 |
| 11101000 | SOB100-120-100 | 100 | 120 | 100 | 1,5 | 1,5 |
| 11101200 | SOB100-120-120 | 100 | 120 | 120 | 1,5 | 1,5 |
| 11101400 | SOB100-120-140 | 100 | 120 | 140 | 1,5 | 1,5 |
| 11110500 | SOB110-130-50 | 110 | 130 | 50 | 1,5 | 1,5 |
| 11110700 | SOB110-130-70 | 110 | 130 | 70 | 1,5 | 1,5 |
| 11110800 | SOB110-130-80 | 110 | 130 | 80 | 1,5 | 1,5 |
| 11111000 | SOB110-130-100 | 110 | 130 | 100 | 1,5 | 1,5 |
| 11111200 | SOB110-130-120 | 110 | 130 | 120 | 1,5 | 1,5 |
| 11120700 | SOB120-140-70 | 120 | 140 | 70 | 1,5 | 1,5 |
| 11120800 | SOB120-140-80 | 120 | 140 | 80 | 1,5 | 1,5 |
| 11120900 | SOB120-140-90 | 120 | 140 | 90 | 1,5 | 1,5 |
| 11121000 | SOB120-140-100 | 120 | 140 | 100 | 1,5 | 1,5 |
| 11121200 | SOB120-140-120 | 120 | 140 | 120 | 1,5 | 1,5 |
| 11121400 | SOB120-140-140 | 120 | 140 | 140 | 1,5 | 1,5 |
| 11125100 | SOB125-145-100 | 125 | 145 | 100 | 1,5 | 1,5 |
| 11125120 | SOB125-145-120 | 125 | 145 | 120 | 1,5 | 1,5 |
| 11130800 | SOB130-150-80 | 130 | 150 | 80 | 1,5 | 1,5 |
| 11131000 | SOB130-150-100 | 130 | 150 | 100 | 1,5 | 1,5 |
| 11131300 | SOB130-150-130 | 130 | 150 | 130 | 1,5 | 1,5 |
| 11141008 | SOB140-160-100 | 140 | 160 | 100 | 1,5 | 1,5 |
| 11141408 | SOB140-160-140 | 140 | 160 | 140 | 1,5 | 1,5 |
| 11151000 | SOB150-170-100 | 150 | 170 | 100 | 1,5 | 1,5 |
| 11151500 | SOB150-170-150 | 150 | 170 | 150 | 1,5 | 1,5 |
| 11160800 | SOB160-180-80 | 160 | 180 | 80 | 1,5 | 1,5 |
| 11161000 | SOB160-180-100 | 160 | 180 | 100 | 1,5 | 1,5 |
| 11161500 | SOB160-180-150 | 160 | 180 | 150 | 1,5 | 1,5 |
| 11171000 | SOB170-190-100 | 170 | 190 | 100 | 1,5 | 1,5 |
| 11171500 | SOB170-190-150 | 170 | 190 | 150 | 1,5 | 1,5 |
| 11181000 | SOB180-200-100 | 180 | 200 | 100 | 1,5 | 1,5 |
| 11181500 | SOB180-200-150 | 180 | 200 | 150 | 1,5 | 1,5 |
| 11191000 | SOB190-210-100 | 190 | 210 | 100 | 1,5 | 1,5 |
| 11191500 | SOB190-210-150 | 190 | 210 | 150 | 1,5 | 1,5 |
| 11201500 | SOB200-230-150 | 200 | 230 | 150 | 1,5 | 1,5 |
| 11202000 | SOB200-230-200 | 200 | 230 | 200 | 1,5 | 1,5 |
