Detail produk:
|
Marerial: | Bushing Grafit Fosfor Perunggu | Ukuran: | ID * OD * H |
---|---|---|---|
Bahan standar: | DIN GB-CuSn5Zn5Pb5 | Tipe: | Terpasang |
Aplikasi: | mesin karet, industri ringan dan industri alat mesin dll. | Serupa: | # 500-seri, BWG, BWG-F, COB-05, COB-050 tom -055, COB-056 tom -057, CSB 650-serie, JDB-serie |
Cahaya Tinggi: | graphite impregnated bushings,graphite filled bronze bushes |

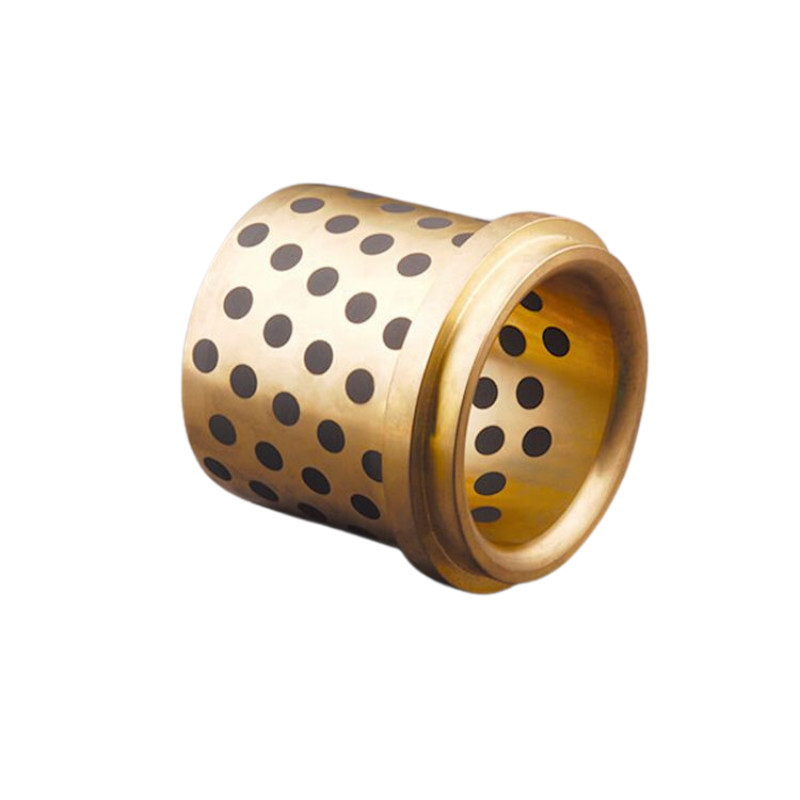

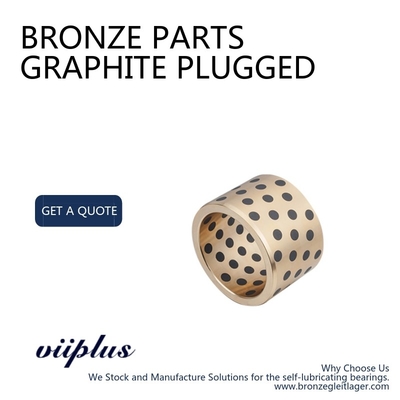

Bantalan grafit steker terutama digunakan dalam aplikasi yang membutuhkan pelumasan terus-menerus di area yang sulit dijangkau.Grafit secara mekanis dipaksa masuk ke dalam lubang / alur di bawah tekanan ekstrim.Sebuah film pelumas dipindahkan ke poros saat mulai berputar.Bantalan ini menawarkan pelumasan berkelanjutan dalam waktu lama tanpa perawatan.

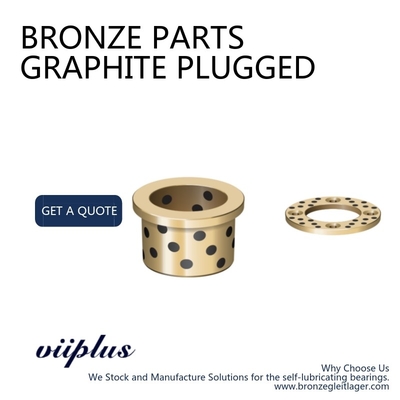

1. Bahan perunggu / besi padat sangat cocok untuk aplikasi yang sangat menuntut di lingkungan yang sulit.Kami menawarkan berbagai macam standar polosbushing lengan, bushing bergelang dan pelat geser sesuai dengan ISO 4379 dan DIN1850.
2. Badan perunggu padat dapat dibor lubang dan diisi pelumas grafit padat, dengan cara ini dapat digunakan di lingkungan tanpa minyak.
3. Juga tubuh perunggu padat bisa menjadi alur dan lubang oli mesin, bisa mendapatkan pelumas yang lebih baik setelah diisi dengan minyak.
1. tidak peka terhadap lingkungan kotor
2. Tahan terhadap beban kejut dan getaran pada kecepatan rendah
3. Aktifkan operasi dengan permukaan akhir poros yang buruk
4. Ketahanan yang baik terhadap kondisi korosif
Bushing dan pelat Perunggu Padat seluruhnya terbuat dari perunggu timah, CuSn10P, yang memiliki kemampuan mesin yang sangat baik.Semua permukaan bushing perunggu padat dikerjakan dengan mesin.
Bushing dan pelat besi padat dibuat dengan cara yang sama dari bahan perunggu, tetapi biayanya jauh lebih rendah jika Anda tidak memiliki persyaratan kinerja tinggi.
1. mesin konstruksi
2. Peralatan transportasi
3. Mesin pembuat pulp dan kertas
4. Peralatan lepas pantai
Komposisi dan Properti Material | |||||||
Kode | BAGIAN PERUNGGU | BAGIAN PERUNGGU | BAGIAN PERUNGGU | BAGIAN PERUNGGU | BAGIAN PERUNGGU | BAGIAN PERUNGGU | BAGIAN PERUNGGU |
(500 #) | (500 # S1) | (500 # S2) | (500 # S3) | (500 # S4) | (HT250) | (Gcr15) | |
Kode | CuZn25Al | CuZn25Al | CuAl9Fe4 | CuSn5P | CuSn12 | HT250 | Gcr15 |
5Mn3Fe3 | 5Mn3Fe3 | Ni4Mn2 | b5Zn5 | ||||
Massa jenis | 8 | 8 | 8.5 | 8.9 | 9.05 | 7.3 | 7.8 |
Kekerasan HB | > 210 | > 250 | > 150 | > 70 | > 80 | > 190 | HRC > 58 |
N / mm2 Kekuatan tarik | > 750 | > 800 | > 800 | > 200 | > 260 | > 250 | > 1500 |
Pemanjangan% | > 12 | > 8 | > 15 | > 10 | > 8 | > 5 | > 15 |
Koefisien muai panjang 10-5 / ℃ | 1.9 | 1.9 | 1.9 | 1.8 | 1.8 | 1 | 1.1 |
Batasi Suhu ℃ | -40 ~ + 300 | -40 ~ + 150 | -40 ~ + 400 | -40 ~ + 400 | -40 ~ + 400 | -40 ~ + 400 | -40 ~ + 400 |
Beban maks. N / mm2 | 100 | 120 | 150 | 60 | 70 | 80 | 200 |
m / mnt Kecepatan maks. (Kering) | 15 | 15 | 20 | 10 | 10 | 8 | 5 |
Max.PVN / mm2 * m / mnt | 200 | 200 | 60 | 60 | 80 | 40 | 150 |
300N / mm2 | < 0,01 | < 0,005 | < 0,04 | < 0,05 | < 0,05 | < 0,015 | < 0,002 |
Bahan Dasar Internasional | |||||||
Kode Material | Merek China GB1176-87 | ISO 1338 Internasional | Jerman DIN | JIS Jepang | Amerika ASTM (UNS) | Inggris BS | Prancis NF |
BAGIAN BRONZE (500 #) | ZCuZn25Al6 Fe3Mn3 | GCuZn25Al6 Fe3Mn3 | DIN1709 G-CuZn25Al5 | H5102 CAC304 | B30-92 C86300 | HTB2 | |
BAGIAN BRONZE (500 # S1) | ZCuZn25Al6 Fe3Mn3 | GCuZn25Al6 Fe3Mn3 | DIN1709 G-CuZn25Al5 | H5102 CAC304 | B30-92 C86300 | HTB2 | |
BAGIAN BRONZE (500 # S2) | ZCuSn5 Pb5Zn5 | GCuPb5 Sn5Zn5 | DIN1705 G-CuSn5ZnPb | H5111 BC6 | B30-92 C83600 | LG2 | CuPb5 Sn5Zn5 |
BAGIAN BRONZE (500 # S3) | ZCuAl9Fe4 Ni4Mn2 | GCuAl10 FeNi5 | DIN17656 G-CuAl10Ni | H5114 AlBC3 | B30-92 C95500 | AB2 | CuAl10 Fe5Ni5 |
BAGIAN BRONZE (HT250) | GB5675-85 HT250 | FC250 | ASTM Kelas 40 | ||||
Pelumas Padat | |||||||
Pelumas | fitur | Aplikasi biasa | |||||
Grafit + tambahkan | Ketahanan yang sangat baik terhadap serangan kimia dan gesekan rendah, batas Temp 400 ℃ | Cocok untuk mesin umum dan di bawah atmosfer |
Tipe | Spesifikasi | Tipe | Spesifikasi | ||
BISNIS GRAFIT PERUNGGU | 808 | 8 × 12 × 8 | BISNIS GRAFIT PERUNGGU | 1640 | 16 × 22 × 40 |
BISNIS GRAFIT PERUNGGU | 810 | 8 × 12 × 10 | BISNIS GRAFIT PERUNGGU | 1812 | 18 × 24 × 12 |
BISNIS GRAFIT PERUNGGU | 812 | 8 × 12 × 12 | BISNIS GRAFIT PERUNGGU | 1815 | 18 × 24 × 15 |
BISNIS GRAFIT PERUNGGU | 815 | 8 × 12 × 15 | BISNIS GRAFIT PERUNGGU | 1820 | 18 × 24 × 20 |
BISNIS GRAFIT PERUNGGU | 1008 | 10 × 14 × 8 | BISNIS GRAFIT PERUNGGU | 1825 | 18 × 24 × 25 |
BISNIS GRAFIT PERUNGGU | 1010 | 10 × 14 × 10 | BISNIS GRAFIT PERUNGGU | 1830 | 18 × 24 × 30 |
BISNIS GRAFIT PERUNGGU | 1012 | 10 × 14 × 12 | BISNIS GRAFIT PERUNGGU | 2010 | 20 × 28 × 10 |
BISNIS GRAFIT PERUNGGU | 1015 | 10 × 14 × 15 | BISNIS GRAFIT PERUNGGU | 2012 | 20 × 28 × 12 |
BISNIS GRAFIT PERUNGGU | 1020 | 10 × 14 × 20 | BISNIS GRAFIT PERUNGGU | 2016 | 20 × 28 × 16 |
BISNIS GRAFIT PERUNGGU | 1208 | 12 × 18 × 8 | BISNIS GRAFIT PERUNGGU | 2019 | 20 × 28 × 19 |
BISNIS GRAFIT PERUNGGU | 1210 | 12 × 18 × 10 | BISNIS GRAFIT PERUNGGU | 2020 | 20 × 28 × 20 |
BISNIS GRAFIT PERUNGGU | 1212 | 12 × 18 × 12 | BISNIS GRAFIT PERUNGGU | 2025 | 20 × 28 × 25 |
BISNIS GRAFIT PERUNGGU | 1215 | 12 × 18 × 15 | BISNIS GRAFIT PERUNGGU | 2030 | 20 × 28 × 30 |
BISNIS GRAFIT PERUNGGU | 1216 | 12 × 18 × 16 | BISNIS GRAFIT PERUNGGU | 2035 | 20 × 28 × 35 |
BISNIS GRAFIT PERUNGGU | 1219 | 12 × 18 × 19 | BISNIS GRAFIT PERUNGGU | 2040 | 20 × 28 × 40 |
BISNIS GRAFIT PERUNGGU | 1220 | 12 × 18 × 20 | BISNIS GRAFIT PERUNGGU | 2050 | 20 × 28 × 50 |
BISNIS GRAFIT PERUNGGU | 1225 | 12 × 18 × 25 | BISNIS GRAFIT PERUNGGU | 2512 | 25 × 33 × 12 |
BISNIS GRAFIT PERUNGGU | 1230 | 12 × 18 × 30 | BISNIS GRAFIT PERUNGGU | 2516 | 25 × 33 × 16 |
BISNIS GRAFIT PERUNGGU | 1310 | 13 × 19 × 10 | BISNIS GRAFIT PERUNGGU | 2520 | 25 × 33 × 20 |
BISNIS GRAFIT PERUNGGU | 1312 | 13 × 19 × 12 | BISNIS GRAFIT PERUNGGU | 2525 | 25 × 33 × 25 |
BISNIS GRAFIT PERUNGGU | 1315 | 13 × 19 × 15 | BISNIS GRAFIT PERUNGGU | 2530 | 25 × 33 × 30 |
BISNIS GRAFIT PERUNGGU | 1320 | 13 × 19 × 20 | BISNIS GRAFIT PERUNGGU | 2535 | 25 × 33 × 35 |
BISNIS GRAFIT PERUNGGU | 1410 | 14 × 20 × 10 | BISNIS GRAFIT PERUNGGU | 2540 | 25 × 33 × 40 |
Bahan | Perunggu | CuZn25Al6Fe3Mn3 + Grafit |
Besi | Besi tuang + Grafit | |
Massa jenis | 8,2 g / cm3 | |
Kekuatan tarik | > = 755N / mm2 | |
Keuletan Anti-kompak | > = 400 ~ 500KJ / m3 | |
Kekerasan | > = 200HB | |
Beban Maks Tekanan | 100N / mm2 | |
Batas kecepatan | 0,5 m / dtk | |
Batas nilai PV | 1,65N / mm2.MS | |
Koefisien gesekan | Pelumasan Oli | 0,03 |
Gesekan Kering | 0.16 | |
Suhu kerja | -40 ~ + 300° C |
